WOBBF63
Busbar Insulated Fork 80A 3 Pole 6 Module Purple
SKU
WOBBF63
Box Qty
20
Categories
Busbar
Features
- This convenient bus bar has been designed to suit small board installs where a 3 phase RCD is used to protect 1 MCB on each of the 3 phases (or a 3pole MCB)
- Based on the larger 80Amp end feed 18 way model , this shorter precut model is ideal for small three-phase applications
- Designed for three phase feed in for Active
- Rated current In, busbar comb, end feed 80A
- Rated Voltage 230V/400V
- Type connection Fork type
- Number of phases 3
- Number of modules 6
- Insulated sleeve
- Not Suitable for devices with N-conductor
- Module width 18mm
- Cross section 16mm²
Product specs

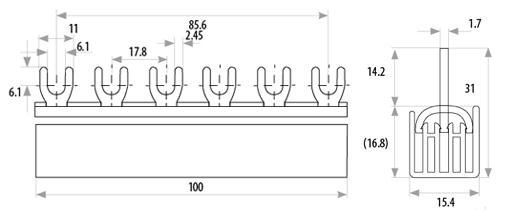

Dimensions
102.8mm x 16mm x 31.7mm
Voltage
230
Amperage
80
Module
6
Poles
3
Material
Steel
Surface finish
Gloss
