WOBBC25

Busbar Connector 25mm² Pack of 4

SKU

WOBBC25

Box Qty

Categories

Busbar

Features

OVERVIEW OF WOLVERINE BUS BAR CONNECTOR The Wolverine BusBar Connector WOBBC25 is a precision-engineered bus bar connector specifically designed to provide reliable electrical distribution in a wide range of industrial, commercial, and residential applications. As an essential component in electrical distribution assemblies, these bus bar connectors deliver superior performance by facilitating efficient power distribution while maintaining optimal safety standards. Busbar connectors assist in ease of connection to modern electrical distribution systems, providing a standardized method for connecting RCBOs and MCBs to a common distributed power source. The WOBBC25 is a fundamental component with premium materials and that ensures consistent performance even under demanding conditions and provides an ideal termination point. KEY FEATURES AND BENEFITS OF WOLVERINE BUS BAR CONNECTORS
Current capacity: Engineered to handle substantial current loads of 63A, making these connectors suitable for both residential and commercial electrical systems, capable of terminating 25mm2.
Superior Insulation: Premium PVC outer casing provides excellent electrical insulation properties.
Operational Stability: Consistent performance characteristics ensure reliable operation throughout the product’s extended service life.
Installation Efficiency: Designed for straightforward installation, reducing install time.
Enhanced Conductivity: High-quality copper connection tongue combined with brass terminal delivers exceptional electrical conductivity.

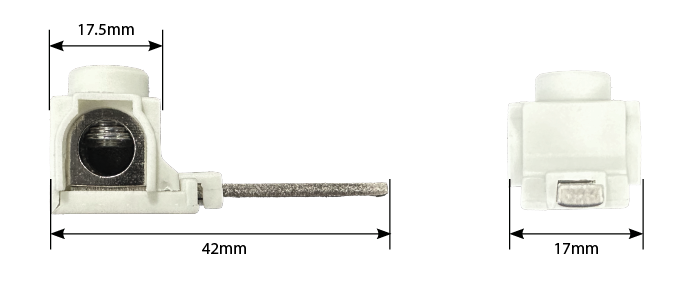

Tongue dimensions: 2.0mm thick X 4.0mm wide x 20.8mm long from insulation
Cable capacity: 6.6mm diameter bore for 25mm2
Nickel plate finish: for environmental protection
Versatility: designed to suit the tongue type connector RCBO terminals as well as clamping in standard terminals that suit fork style busbar assemblies
