WOBBF41
Busbar Insulated Fork 80A 1 Pole 4 Module Purple
SKU
WOBBF41
Box Qty
20
Categories
Busbar
Features
- This convenient bus bar has been designed to suit small board installs where a 2-module wide RCD is used to protect 3 MCBs
- Based on the larger 80Amp end feed 18 way model , this shorter precut model is ideal for small single phase applications
- Designed for single pole feed in for Active
- Rated current In, busbar comb, end feed 80A
- Rated Voltage 230V
- Type connection Fork type
- Number of phases 1
- Number of modules 4
- Insulated sleeve
- Not Suitable for devices with N-conductor
- Module width 18mm
- Cross section 16mm²

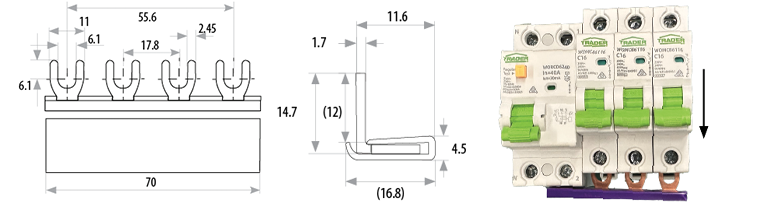

Product specs
Dimensions
67mm x 16.7mm x 31.1mm
Voltage
230
Amperage
80
Module
4
Poles
1
Material
Steel
Surface finish
Gloss
