WOBBF164
Busbar Insulated Fork 80A 4 Pole 16 Module Purple
SKU
WOBBF164
Box Qty
10
Categories
Busbar
Features
- This 16 way 4 pole bus bar is designed to suit applications for 4 pole RCBO’s where the 4th pole links the Neutral
- Designed for three phase feed in for Active also contains a Neutral Bar feature
- Rated current In, busbar comb, end feed 80A
- Rated Voltage 230V/400V
- Type connection Fork type
- Number of phases 3+N
- Number of modules 16
- Insulated sleeve
- Suitable for devices with N-conductor
- Module width 18mm
- Cross section 16mm²
Product specs

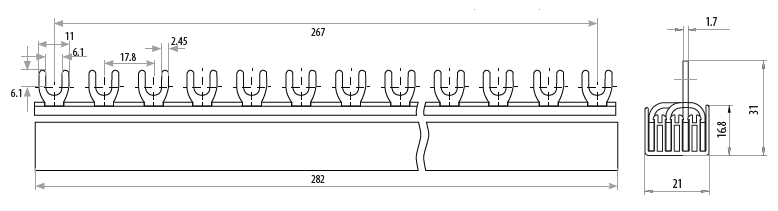

Dimensions
28mm x 20.9mm x 31.1mm
Voltage
230
Amperage
80
Module
16
Poles
4
Material
Steel
Surface finish
Gloss
