PUPP2GVPLB
Power Point Switched 2 Gang Double Pole Shuttered 10A 250V ac Vandal Proof with Label Windows
SKU
PUPP2GVPLB
Box Qty
10
Categories
Power Points
Features
- Vandal Proof Double Power Points With Label Windows
- Power points have Shutters and are Double Pole.
- Oval screw caps for extra adjustment on wall (no removable cover).

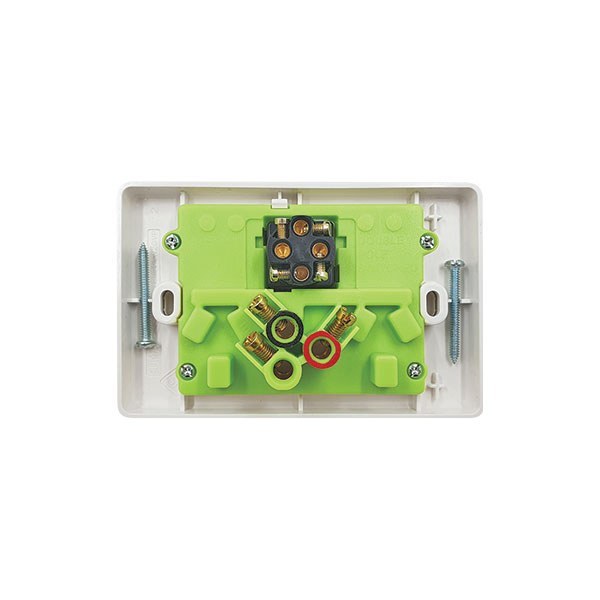

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 5.7mm bore to suit 4 x 2.5mm2 cable.
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.
- Plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Label cap system allows marking to be applied to removable inserts. These are then securely covered by the mounting window cover at the time of installation.
- Power points achieve IK09 to IEC62262:2002.
- Standard colour is white.
- Shutter operates from either earth or neutral
- Power points approved to AS/NZS3112.
Product specs

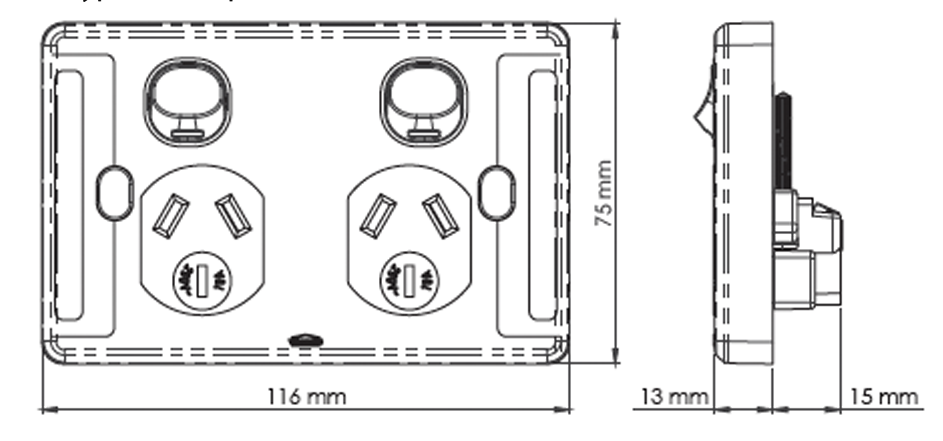

Dimensions
116mm x 28mm x 76mm
Voltage
250
Amperage
10
Poles
2
Material
Polycarbonate
Surface finish
Gloss
PUPP2GVPLB Data Sheet
Download to see product technical details.
Puma Vandal Proof Data Sheet
Puma
Download to see technical details for the complete Puma Vandal Proof range.
Puma Vandal Proof Flyer
Puma
Download to explore the full Puma Vandal Proof range.
Puma Vandal Proof Power Points & Switches
Puma
Know Your Product - Watch this quick product overview to discover the key features and benefits.
