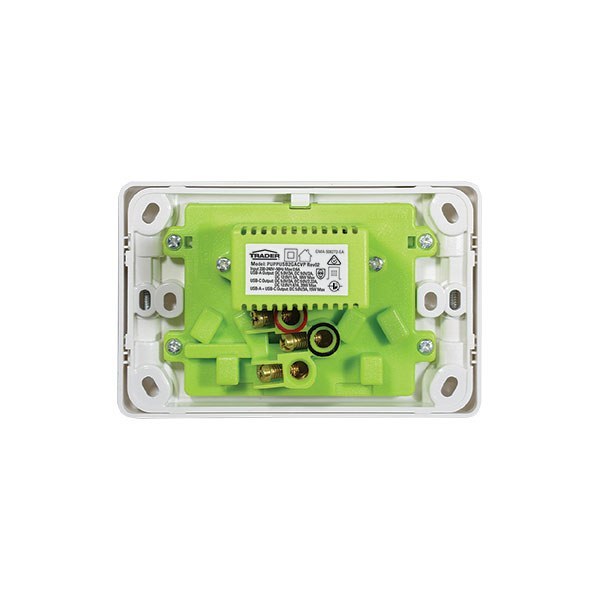

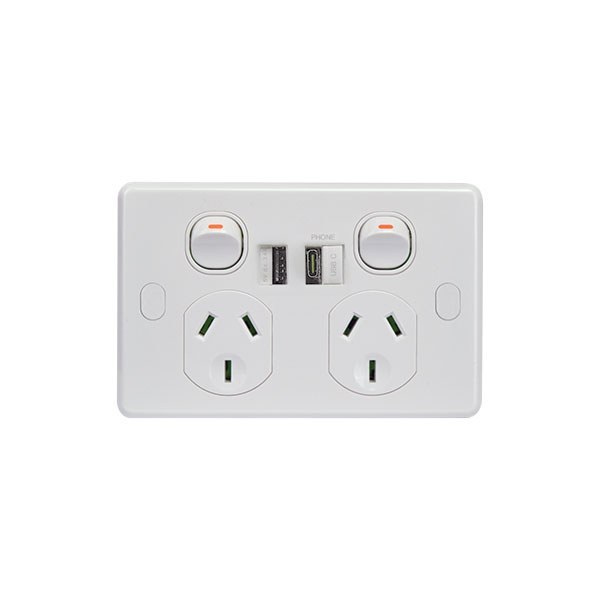

PUPPUSB2GACVP
Power Point Switched 2G 10A 250V ac Shutrd USB ChgrDual Intgr Typ AC 5V 1.7A or 3.4A Vandal Proof
SKU
PUPPUSB2GACVP
Box Qty
16
Categories
Power Points
Features
- Suitable for USB Type A and Type C applications up to 3 Amp at 5V.
- Ideal for phones that utilise USB Type C connections.
- Not suitable for lap tops or other devices requiring greater output than 3 Amp at 5V.
- USB outlet approved to AS/NZS 60950.1
- Electrical power point approved to AS/NZS 3112
- The overall electronic assembly rating is 3.4A at 5V; it then divides the output when devices are inserted in each USB socket.
- PUPPUSB2GACVP has shuttered USB sockets.
- Single Pole, 10A 250V~ Electrical Switched power points.
- Shuttered Electrical Switched power points.
- Fits standard wall boxes and mounting accessories.
- Full cover plate.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Shutter operates from either earth or neutral

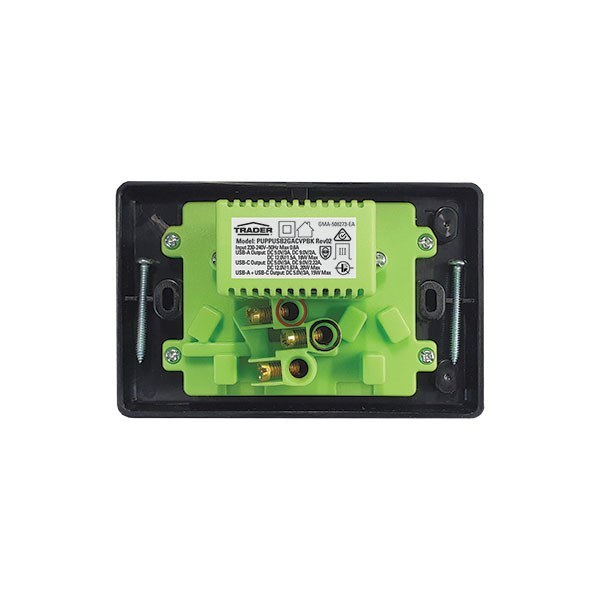

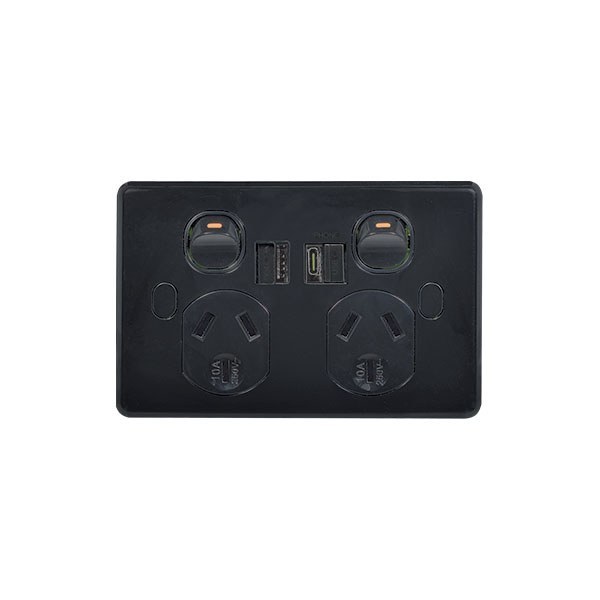

- Standard colour is white. Black also stocked - please check availability.-
Product specs

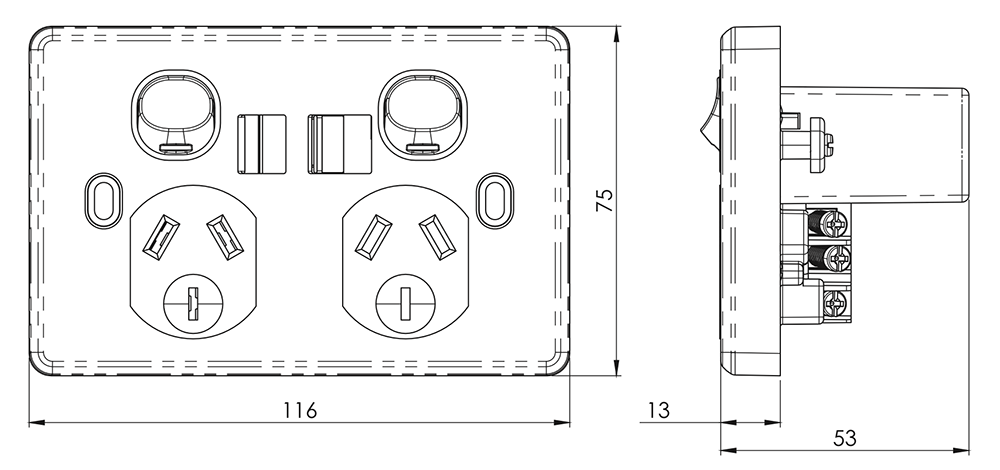

Dimensions
117mm x 76mm x 53mm
Voltage
250
Amperage
10
Usb type
USB-A; USB-C
Poles
1
Material
Polycarbonate
Surface finish
Gloss
Data Sheets Puma VP
Download to see product technical details.
Puma PUPPUSB2 GACVP
Download to see product technical details.
