PUPPSW2GVP

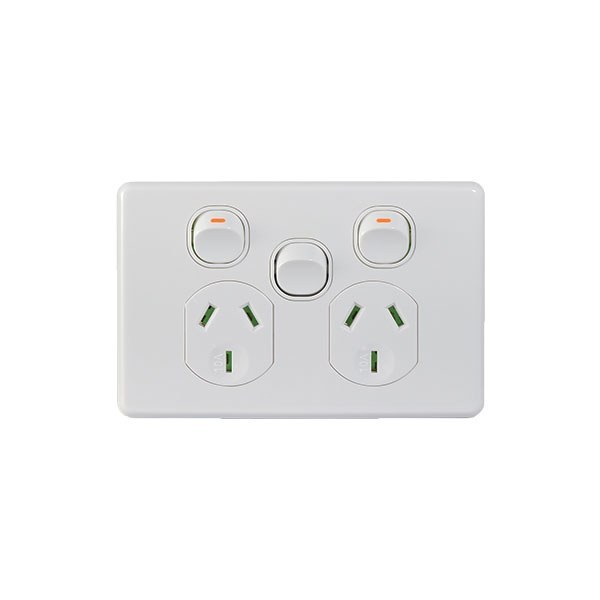

Power Point Switched 2 Gang Double Pole Shuttered 10A 250V ac with Extra Switch 10AX Vandal Proof
SKU
PUPPSW2GVP
Box Qty
5
Categories
Power Points
Features
- Power points have Shutters and are Double Pole.
- Oval screw caps for extra adjustment on wall (no removable cover).

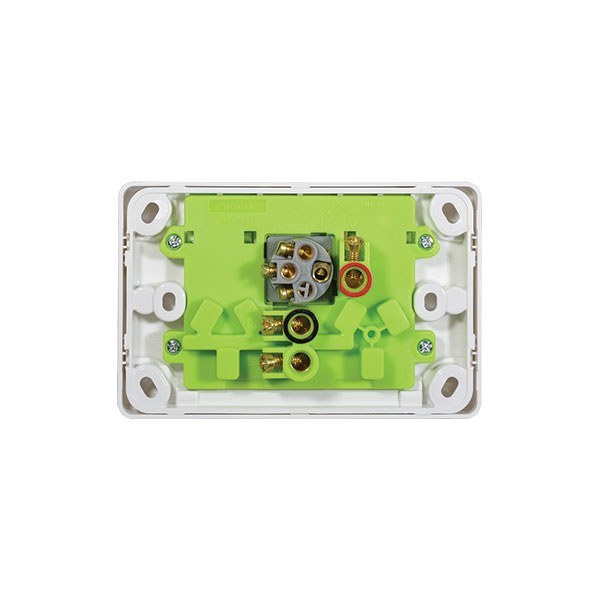

- Uses brass tunnel terminals that have the screws backed out for easier installation. of cabling. Power point terminals have 5.7mm bore to suit 4 x 2.5mm2 cable.
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.
- Plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Power points achieve IK09 to IEC62262:2002.
- Standard colour is white. Also available in Black, Red and Blue. Please check availability.
- Shutter operates from either earth or neutral
- Power points approved to AS/NZS3112.
Product specs
Dimensions
117mm x 76mm x 35mm
Voltage
250
Amperage
10
Switch rating
10
Poles
2
Material
Polycarbonate
Surface finish
Gloss
