MEPBE
Switch Mech Push Button EEC ON OFF 3 Wire for MEPB Blue LED with White Black Buttons for FL PU CO
SKU
MEPBE
Box Qty
1
Categories
Push Button

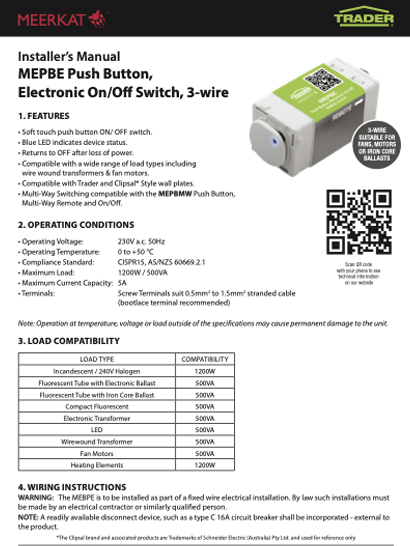

Features
- Soft touch push button ON/ OFF switch.
- Blue LED indicates device status.
- Returns to OFF after loss of power.
- Compatible with a wide range of load types including wire wound transformers & fan motors.

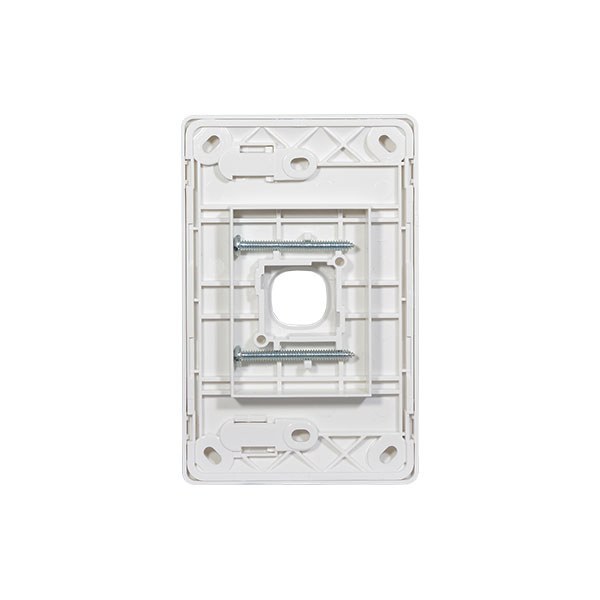

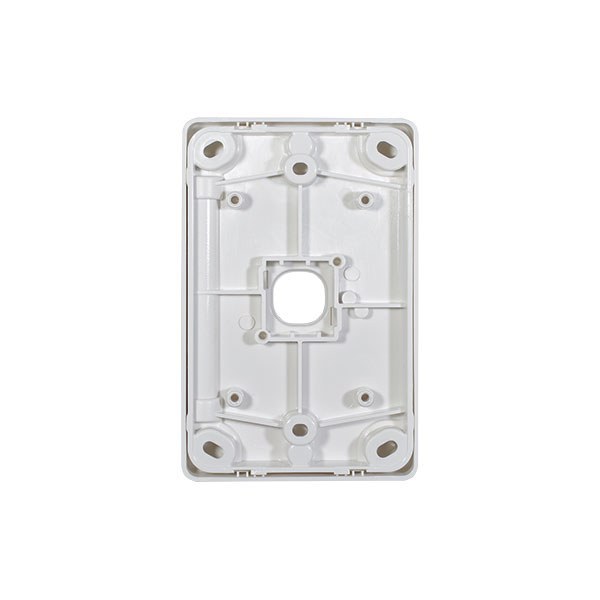

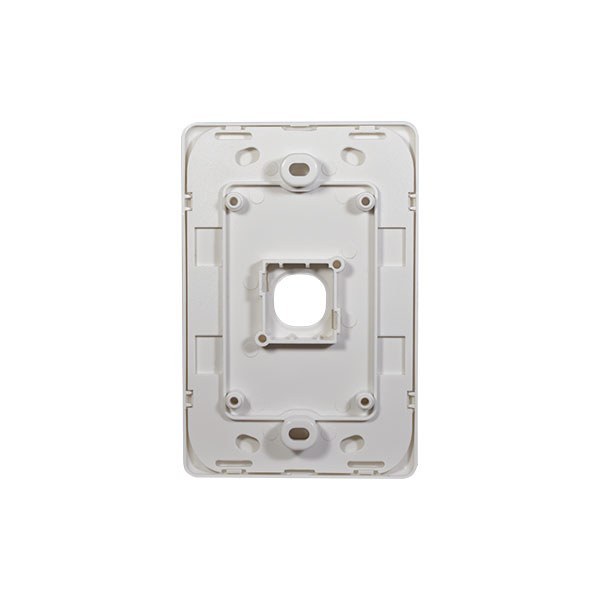

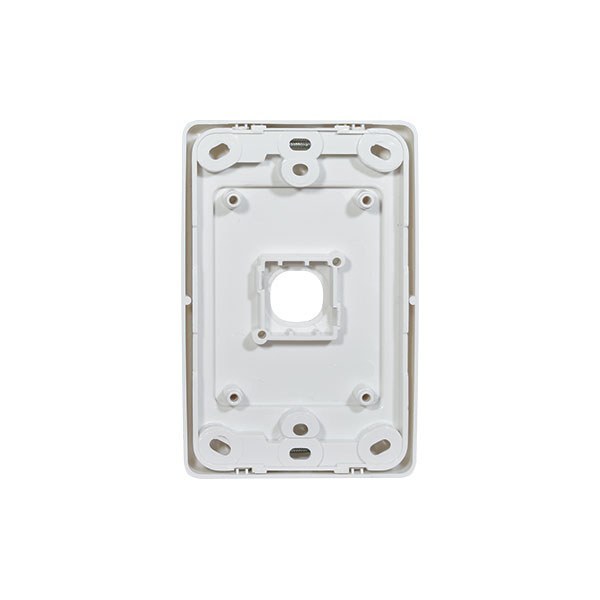

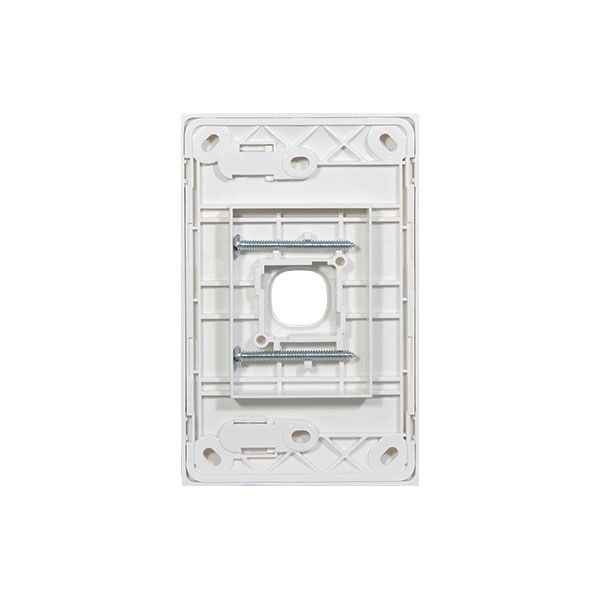

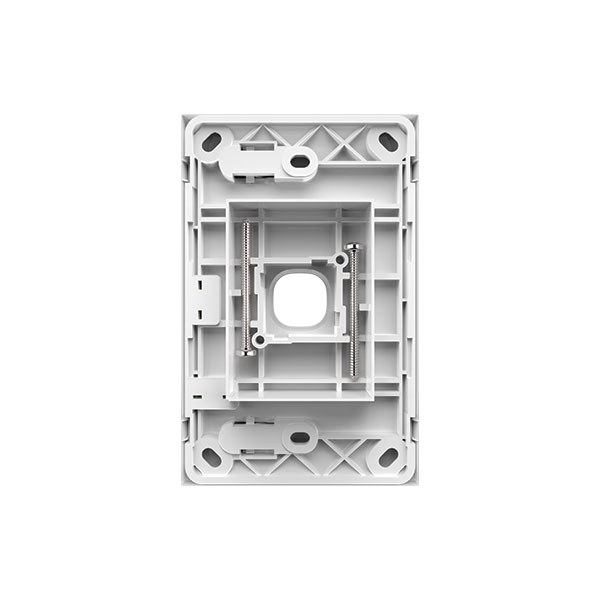

- Compatible with Trader and Clipsal* Style wall plates.

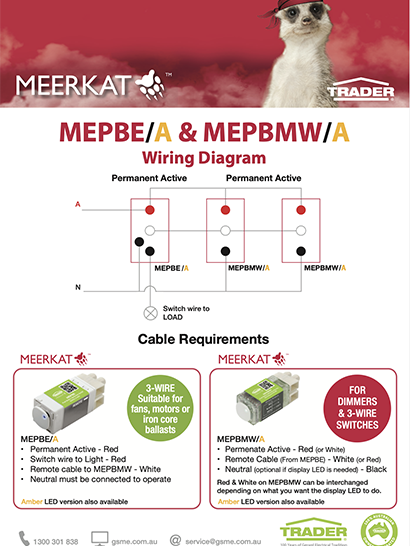

- Multi-Way Switching when used in conjunction with the MEPBMW Multi-Way Remote Dimmer & ON/OFF Push Button.
- Supplied with MEBU Gloss White & Gloss Black buttons, suits Puma, Cougar & Flat Cat gloss finishes. OPERATING CONDITIONS
- Operating Voltage: 230 – 240V a.c. 50Hz

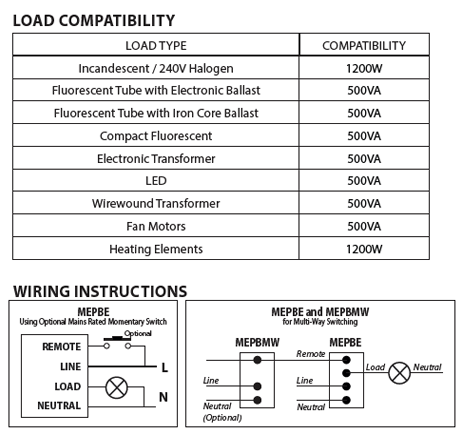

- Maximum Load: 1200W / 500VA (see table below)
- Maximum Current Capacity: 5A
- Terminals: Screw Terminals suit 0.5mm2 to 1.5mm2 stranded cable (bootlace terminal recommended)
- Operating Temperature: 0 to +50 °C
- Compliance Standard: CISPR15, AS/NZS 3100, AS/NZS 60669.2.1-
Product specs
Dimensions
70mm x 40mm x 38mm
Wattage
1200
Voltage
240
Poles
1
Material
Polycarbonate
Surface finish
Gloss
