COSWPV1G
Switch Plate Vertical 1 Gang Less Mech
SKU
COSWPV1G
Box Qty
10
Categories
Plates
Features
- Switches are rated 10AX/16A 250V~ and approved to AS/NZS3133
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling - Switches are two way with looping terminal and suit 3 x 1.5mm2 cabling - 4.1mm terminal bores
- Combination head screws for the terminals
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- The clip in switch mechanism is able to be used and clip into other Trader and competitor switch plate ranges
- Motor rating M100
- Standard colour is white. Black is also available. Please check availability
- Plates suit Trader Meerkat MESW mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories-
Product specs

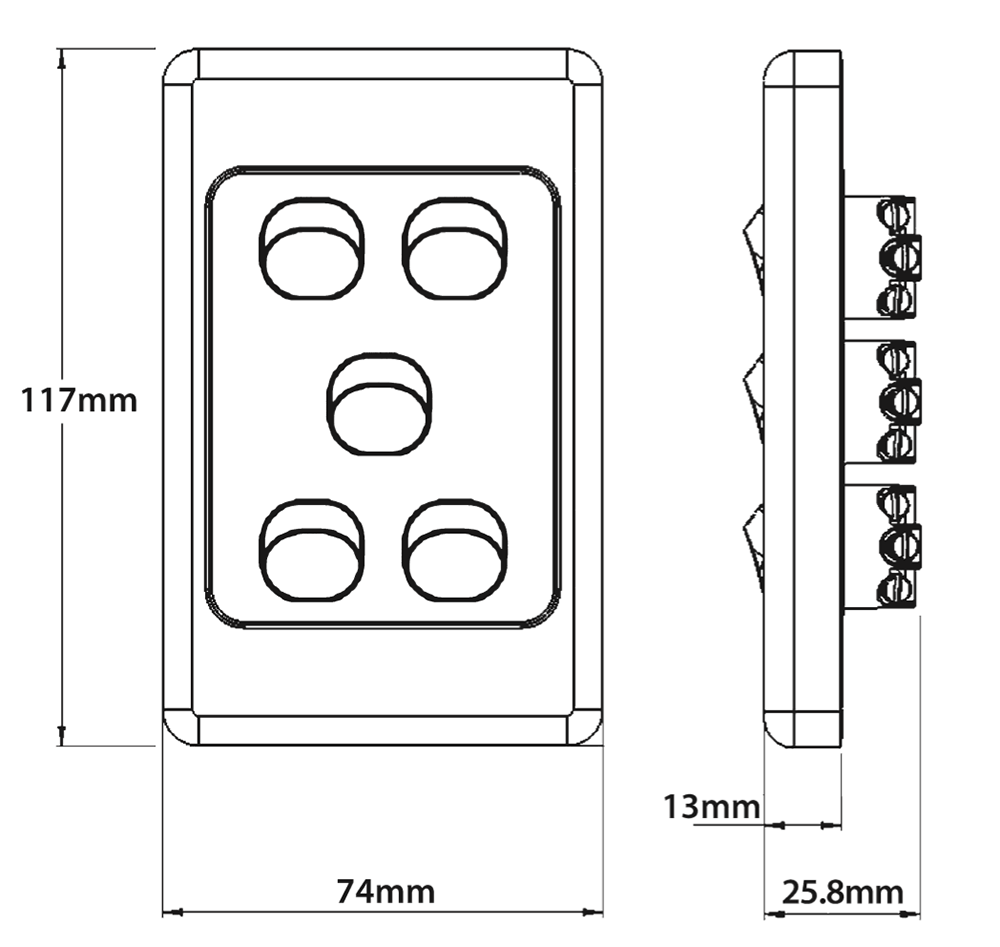

Dimensions
116mm x 76mm x 13mm
Module
Material
Polycarbonate
Surface finish
Gloss
Data Sheets Cougar
Download to see product technical details.
Why Choose Cougar
Download to see product technical details.
Cougar flyer
Cougar
Download to see product technical details.
Cougar COSWPV1 G
Download to see product technical details.
Cougar Shelf Flyer
Cougar
Download the Cougar Shelf Flyer to see Australia’s most favourite switch style
Cougar Range Flyer
Cougar
Download the Cougar Range Flyer to see Australia’s most favourite switch style
POWER POINTS & SWITCHES | Cougar Range
Cougar
Know Your Product - Watch this quick product overview to discover the key features and benefits.
