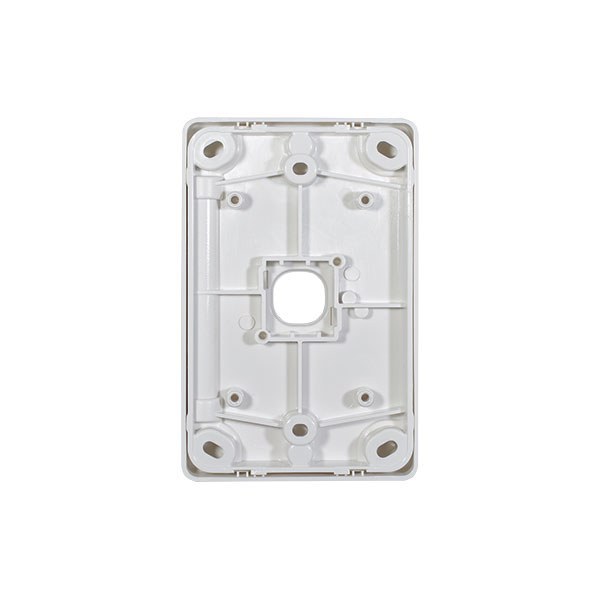

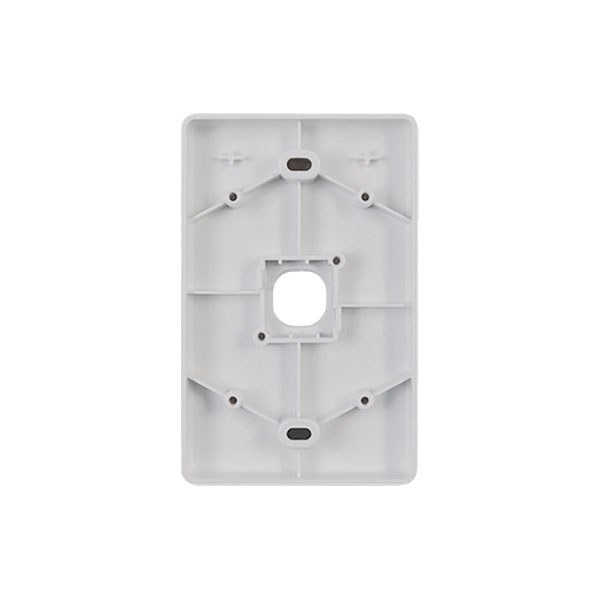

PUSWPV1G
Switch Plate Vertical 1 Gang Less Mech
SKU
PUSWPV1G
Box Qty
10
Categories
Plates
Features
- Switches are rated 10AX/16A 250V~ and approved to AS/NZS3133
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1 bore.
- Slotted head screws for the terminals.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Standard colour is white. Black also stocked - please check availability.
- Plates suit Trader Meerkat MESW mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories-
Product specs

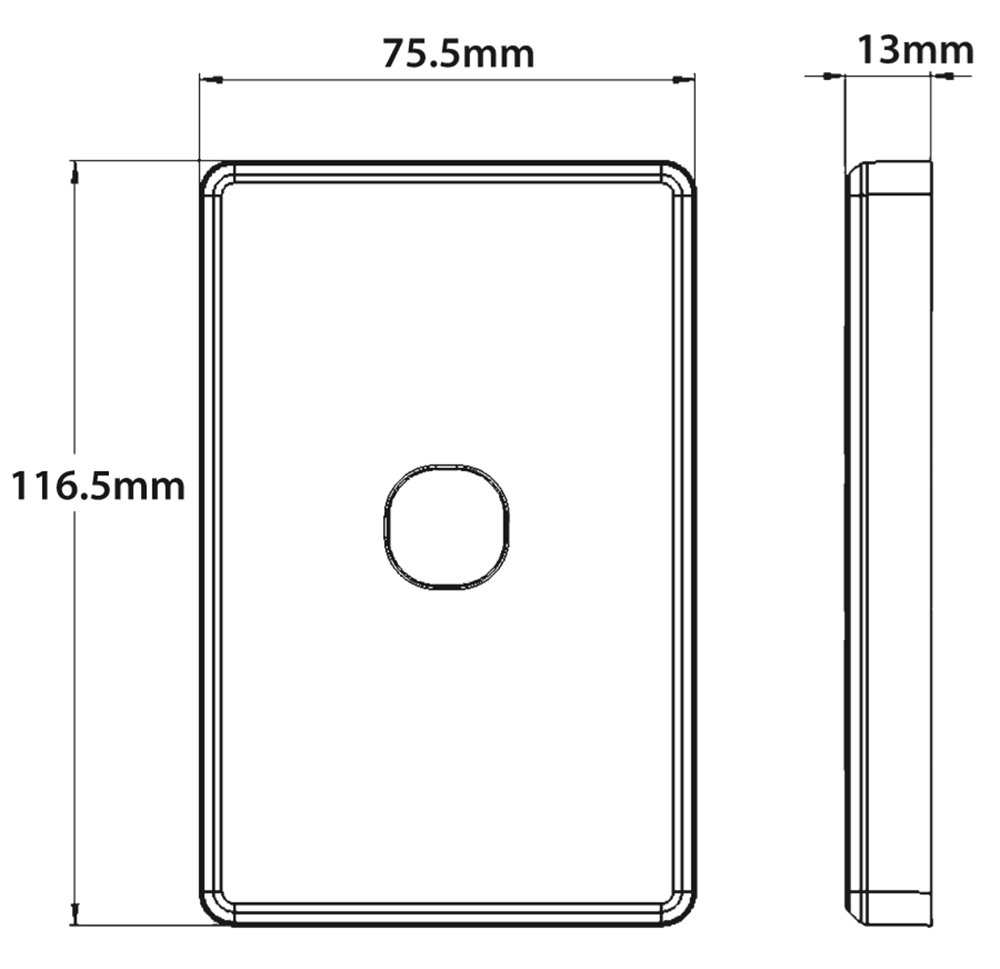

Dimensions
117mm x 76mm x 13mm
Voltage
250
Switch rating
10
Poles
1
Material
Polycarbonate
Surface finish
Gloss
Puma PUSWPV1 G
Download to see product technical details.
