DIMPREX
Dimmer Electronic Push Button ON OFF Rotary Dimming 400W No Glow 2W Minimum
SKU
DIMPREX
Box Qty
20
Categories
Dimmers
Features
- Trader’s Dimpala Electronic PUSH Dimmer is electronically switched and provides optimised dimming of LED lamps and drivers.
- 220-240Vac / 50Hz / 2W Min / 400W Max / 95% (load dependent, see table below).
- Suitable for LED, incandescent and 12V dichroic lamps.
- Minimum dimming level, typically almost 0%.
- Push switch configuration with terminals similar to a standard switch for easy wiring.
- Integrated switch replaces the need for an additional control switch.
- Soft start for improved lamp & driver life.
- Thermal protection via NTC (negative temperature control).
- DIMPRE is suitable for use with Australian wall plate apertures including Trader, HPM# & Clipsal*.
- Can be two way switched, but only one dimmer in the circuit.
Product specs
Dimensions
50mm x 50mm x 60mm
Voltage
240
Poles
1
Material
Polycarbonate
Surface finish
Gloss
DIMPREX Data Sheet
Download to see product technical details.

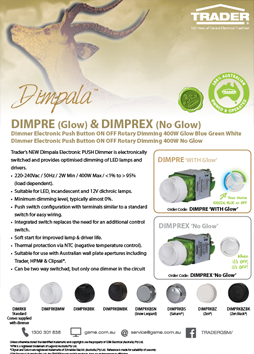

DIMPRE DIMPREX Flyer
Dimpala
Download to explore the more about the DIMPRE DIMPREX.
Dimpala Data Sheet
Dimpala
Download to see technical details for the complete Dimpala range.
Dimmer Range
Dimpala
Know Your Product - Watch this quick product overview to discover the key features and benefits.
