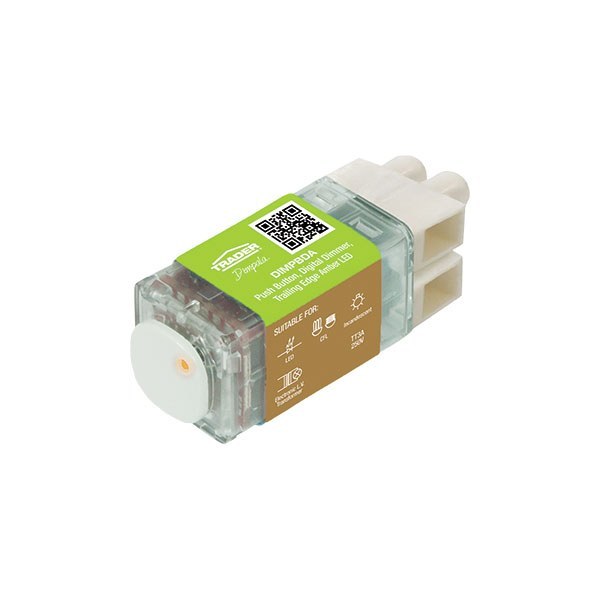

DIMPBD
Dimmer Digital Push Button Trailing Edge 350W White LED 2W Min Wh Bk Curved Button Inc Suit FLPUCO
SKU
DIMPBD
Box Qty
10
Categories
Dimmers
Features
- DIMPBD Push Button Digital Dimmer and ON/OFF switch in one - perfect for dimmable LED.
- Multi-Way Dimming and Switching when used in conjunction with MEPBMW slave unit. Push Button Multi-Way Remote.
- Wider range - Deep Dimming to Zero on most lamps.
- Programmable minimum brightness.
- Double tap when ON - lights dim down to OFF over 30 minutes.
- Double tap when OFF - turn lights ON at previous level and ramps to full brightness over 30 minutes.
- Restarts OFF and retains settings after power loss.
- Improved patented ripple tone filtering.
- Rugged Over Current, Over Voltage and Over Temperature protection.
- Illuminated LED - configurable.
- Trailing Edge dimming with linear response.
- Suits both Trader and Clipsal* wall plates.

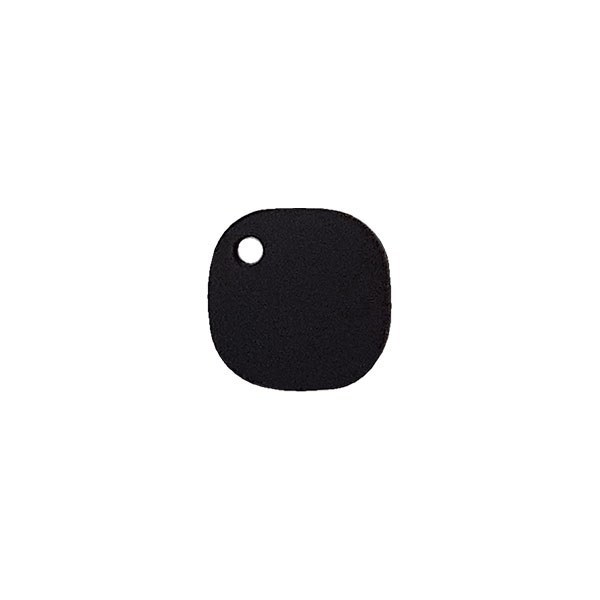

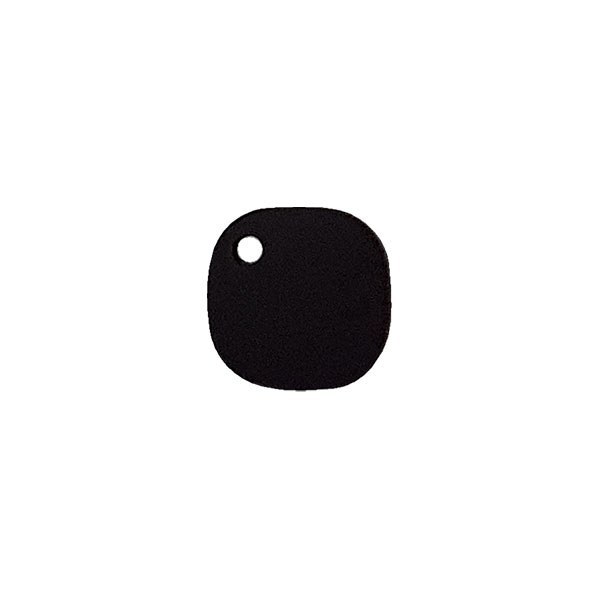

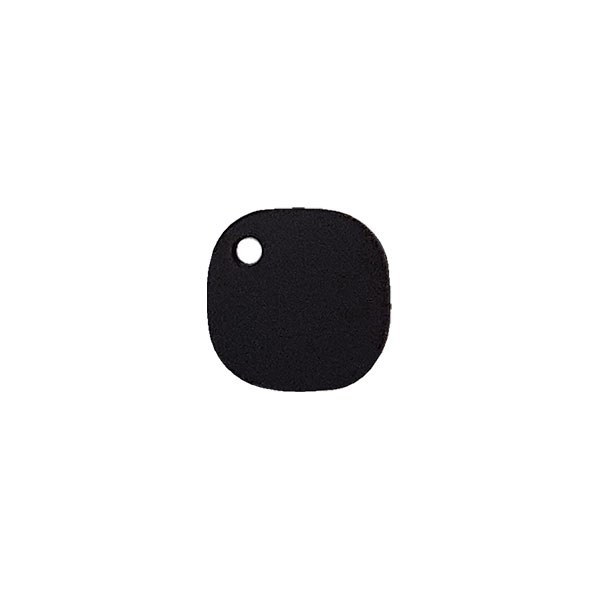

- Supplied with MEBU Gloss White & Gloss Black buttons, suits Puma, Cougar & Flat Cat gloss finishes.
- NOT SUITABLE FOR FANS AND MOTORS. OPERATING CONDITIONS
- Operating Voltage: 230-240Va.c. 50Hz

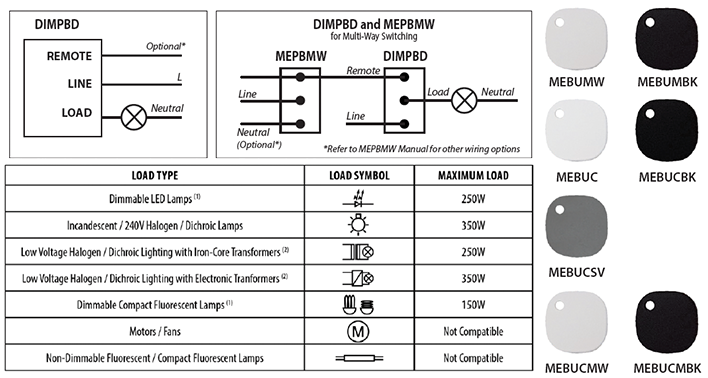

- Maximum Load: 350W (see table below)
- Minimum Load: 1W
- Maximum Current Capacity: 1.5A
- Connection Type: Flying leads with bootlace terminals
- Operating Temperature: 0 to +50 °C
- Certified Standard: AS/NZS 60669.2.1, CISPR15 Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.
Product specs
Dimensions
70mm x 40mm x 38mm
Module
Material
Polycarbonate
Surface finish
Gloss
Data Sheets Dimpala
Download to see product technical details.
Dimpala DIMPBD
Download to see product technical details.
Scorpion Data Sheet
Scorpion
Download to see technical details for the complete Scorpion range.
Push Button Flyer
Meerkat
Download to discover more about this product.

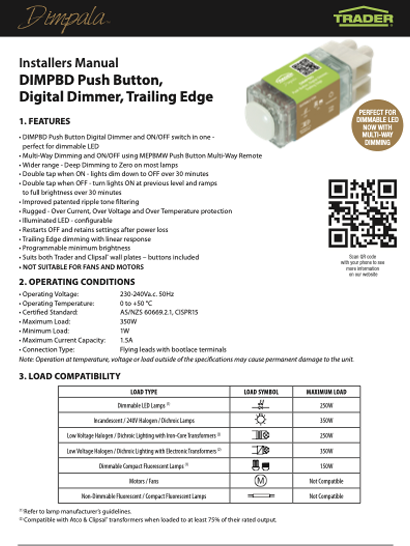

DIMPBD Instructions
