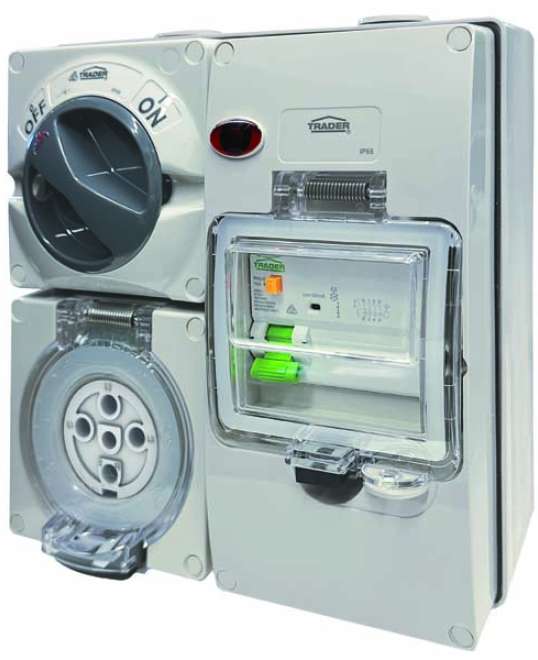

BUC550RC30N
Combination Switched Socket Outlet IP66 50A 500V ac 5 Pin Grey RCD 30mA BUBB4G Neon Indicator
SKU
BUC550RC30N
Box Qty
1
Categories
Combo Switches
Features
- ["Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A and 15A","and five-pin 10A","20A","32A","40A and 50A designs."]
- This range has now been expanded to include Wolverine range 30mA RCD protected combinations mounted in BU4DIN covers on BUBB4G four gang enclosures and pre-wired for ease of installation for the end user.
- Cable links and assembles have been tested in accordance with AS/NZS3100 to ensure suitable thermal performance.
- The RCD protected range currently consists of:
- Single phase Flat pin - 10A and 15A combinations
- Size 1 Three Phase 5 pin - 10A and 20A combinations
- Size 2 Three Phase 5 pin - 32A - 50A combinations
- As standard the DIN covers are non-power available variants.
- Other options may be available upon special request.-
Product specs
Dimensions
213mm x 200mm x 112mm
Voltage
500
Amperage
50
Module
4
Poles
3
Material
Polycarbonate
Surface finish
Gloss
Buffalo BUC550 RC30 N
Download to see product technical details.
