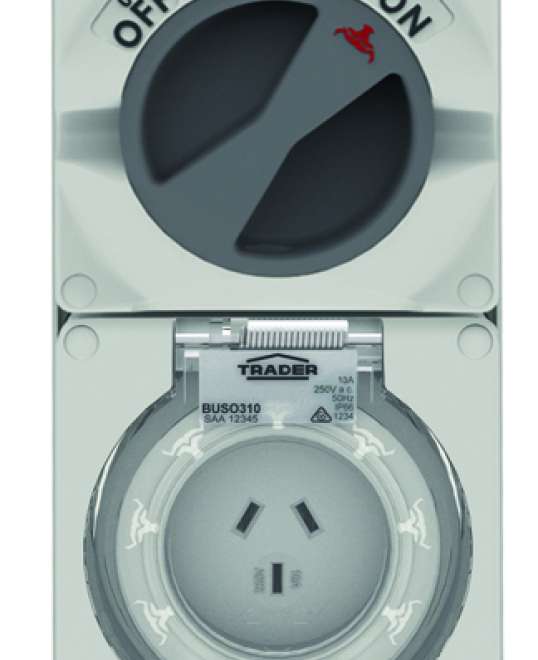

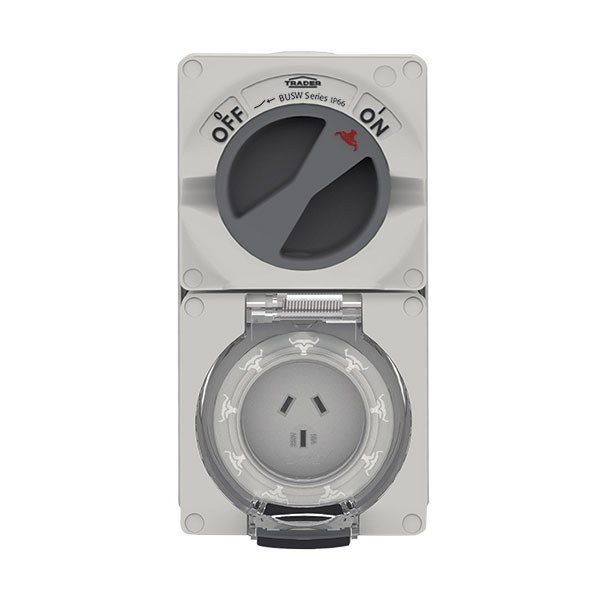

BUC310
Combination Switched Socket Outlet IP66 10A 250V ac 3 Flat Pin Grey
SKU
BUC310
Box Qty
1
Categories
Combo Switches
Features

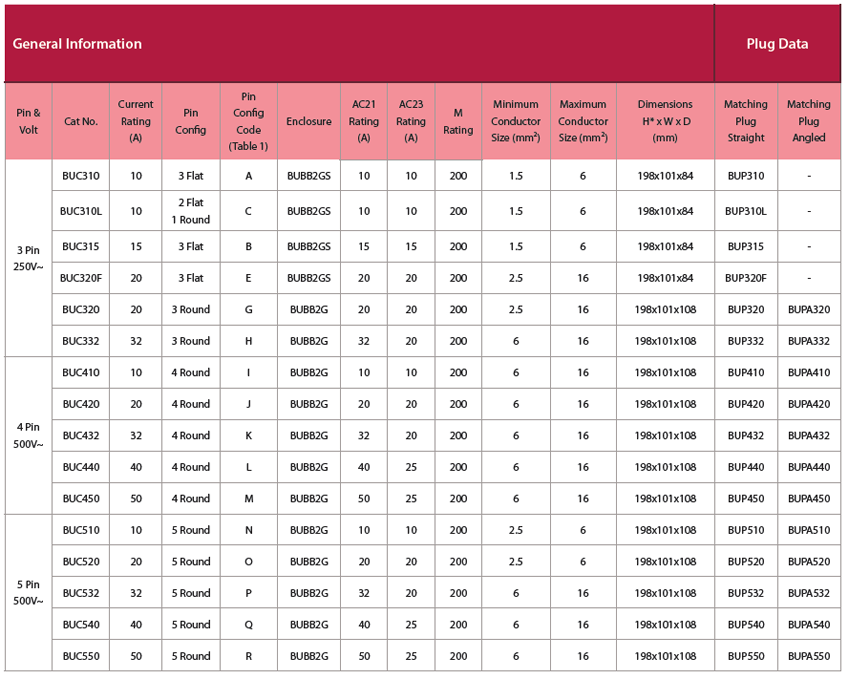

- Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A to 32A, four-pin 10A to 50A and five-pin 10A to 50A designs. Phase links are factory fitted between switches and sockets. Small Single phase Flat pin - 10A to 20A Size 1 Single & Three Phase - 10A- 20A Size 2 Single & Three Phase - 32A - 50A Heavy Duty terminals are standard on all products with Double Pole switching option as standard on 3 pin products. The combination switch handle has two padlocking facilities (Oval Shape 11 x 9mm) so equipment can be safely isolated. Switch is provided with LED fitment option (not supplied). Combination sockets feature a clear dustproof & hoseproof flap allowing simple viewing of sockets. The flap is also provided with a reliable spring-tensioned latch to keep dust & liquids out. Part bag contains twin screwed connector.
Product specs
Dimensions
206mm x 101mm x 85mm
Module
Material
Polycarbonate
Surface finish
Gloss
Data Sheets Buffalo
Download to see product technical details.
Why Choose Buffalo
Buffalo
Click to discover why Buffalo is the ideal choice for your needs!
TRADER WIRING INSTRUCTION BUC
Download to see product technical details.
Buffalo BUC310
Download to see product technical details.
Buffalo BUC310 LLE
Download to see product technical details.
Buffalo Range Flyer
Buffalo
Download to explore the full Buffalo range.
Buffalo Data Sheet
Buffalo
Download to see technical details for the complete Buffalo range.
