WOSB24

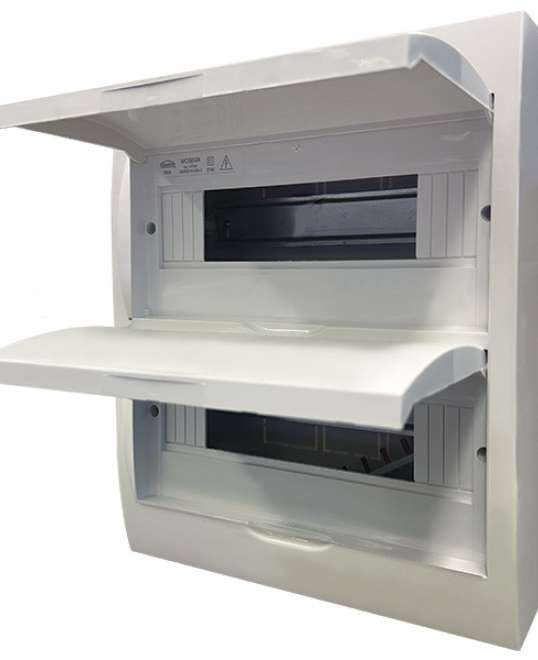

Switchboard Surface Mount 24 Way 100A 415V IP40 with White Door for Indoor Use
SKU
WOSB24
Box Qty
1
Categories
Switchboard
Features
- ["• The WOSB12","WOSB18 and WOSB24 are designed for indoor surface mounting use only and intended for use to accommodate circuit protection devices such as circuit breakers; RCDs","isolating switches","surge\/ over-voltage protection and other such products.\n• They are intended for use in domestic or commercial applications.\n• They MUST be installed by a licensed electrician and follow AS\/NZS3000 wiring rules.\n• They comply and have been tested in accordance with AS\/NZS61439.3\n• IP40 from the front surfaces when mounted to AS 60529.\n• Ipk: 17kA for the enclosure assembly.\n• Class 2 assembly.\n• 100A rated assembly and contains Neutral and Earth bars with double rows of screws.\n• Parts pack includes 80A rated bus bar","sticker labelling pack in red and green for non-RCD protected and RCD protected circuit identification","pole fillers (full and half DIN module sizes)\nINTERFACE CHARACTERISTIC\nVoltage ratings\nRated voltage (Un): 415V\nRated operational voltage (Ue): 415V\nRated insulation voltage (Ui) :1000V\nRated impulse withstand voltage of assembly (Uimp):4000V\nComplies with minimum overvoltage category III according IEC 60364-4-44\nCurrent ratings\nRated current of the ASSEMBLY (InA) : 100A\nRated peak withstand current (Ipk):17kA\nRated conditional short-circuit current of an ASSEMBLY (Icc):10kA\nRated diversity factor (RDF) 1-0.9\nRated frequency (fn) 50Hz\nPollution degree: 2\nIndoor installation only\nFixed stationary installation.\nInstallation to be carried out by a skilled licensed electrician\nMechanical impact protection:IK05\nFor protection against electric shock requires screws to be removed to access live parts.\nType B distribution board\nThe rating of loose busbars. 80A end fed or 100A centre feed.\nNeutral link rating : 100A\nOverall dimensions:\n12 module: 255mm(w) x 200mm(h) x 100mm(d)","Weight:\n12 module: 0.912kg",""]
Product specs
Amperage (A)
100
Voltage (V)
415
Fault Current (kA)
17
Module
24
Poles (Pole)
24
Material
633630006
Surface Finish
633630005
