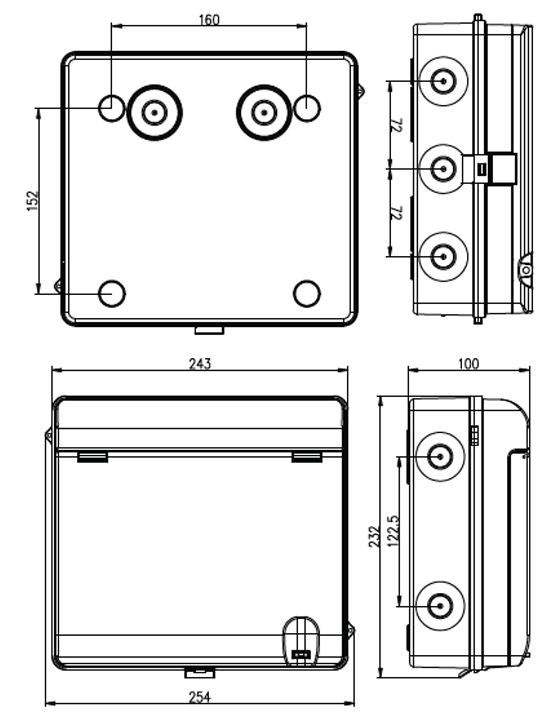

WOSBWPM10

Switchboard Surface Mount Weatherproof Metal 10 Way 100A 415V ac IP65 Grey

SKU

WOSBWPM10

Box Qty

Categories

Switchboard

Features

The WOSBWPM5 and WOSBWPM10 are designed for outdoor surface mounting use only and intended for use to accommodate circuit protection devices such as circuit breakers; RCDs, isolating switches, surge/ over-voltage protection and other such products.
They are intended for use in domestic or commercial applications.
They MUST be installed by a licensed electrician and follow AS/NZS3000 wiring rules.
They comply and have been tested in accordance with AS/NZS61439.3
IP65 from the front surfaces when mounted to AS 60529.
Ipk: 17kA for the enclosure assembly.
Class 2 assembly.
100A rated assembly and contains Neutral and Earth bars with single row of screws complying with AS/NZS 3000 clause 3.7.2.11 for screw to tunnel ratio for earthing.

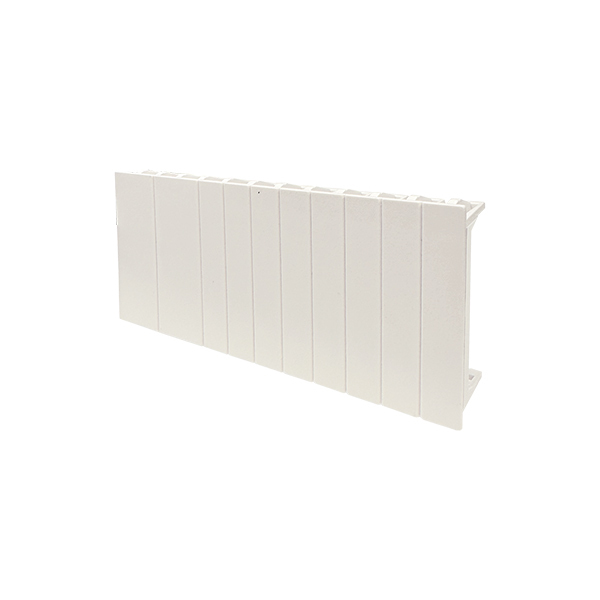

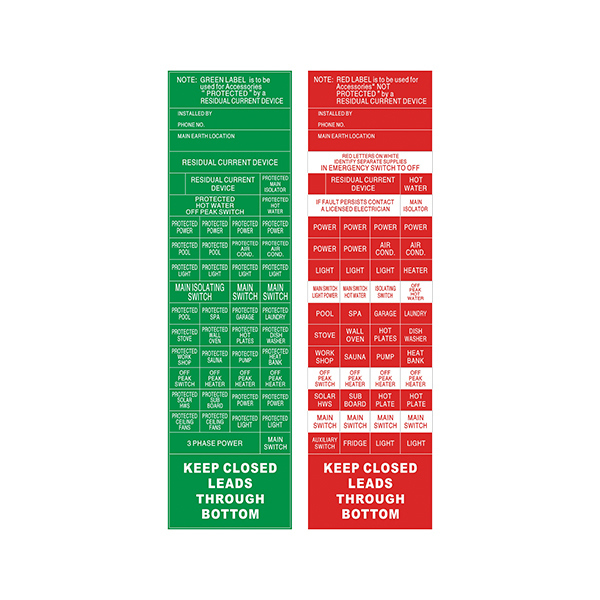

Parts pack includes 80A rated bus bar, sticker labelling pack in red and green for non-RCD protected and RCD protected circuit identification, pole fillers (full and half DIN module sizes)
Sticker labelling pack available seperate WOSBSP. INTERFACE CHARACTERISTIC Voltage ratings Rated voltage (Un): 415V Rated operational voltage (Ue): 415V Rated insulation voltage (Ui) :1000V Rated impulse withstand voltage of assembly (Uimp):4000V Complies with minimum overvoltage category III according IEC 60364-4-44 Current ratings Rated current of the ASSEMBLY (InA) : 100A Rated peak withstand current (Ipk):17kA Rated conditional short-circuit current of an ASSEMBLY (Icc): 10kA Rated diversity factor (RDF) 1-0.9 Rated frequency (fn) 50Hz Pollution degree: 2 Fixed stationary installation. Mechanical impact protection: IK07 For protection against electric shock requires screws to be removed to access live parts. Type B distribution board The rating of loose busbars. 80A end fed or 100A centre feed. Neutral link rating : 100A Cover screws contain special earthing features and must be securely fastened.
