PUSWV4GFLHH
Switch Vertical 4 Gang 10AX 16A 250V ac Mechs Labelled FAN LIGHT HEAT HEAT
SKU
PUSWV4GFLHH
Box Qty
10
Categories
Switches
Features
- The Puma PUSWV4GFLHH is the stylish 4 Gang Switch Plate that has mechanisms labelled with FAN, LIGHT, HEAT, HEAT text. It is the ideal product to control FAN/LIGHT/HEAT 3IN1 bathroom units. Features:
- Switches are rated 10AX/16A 250V~ and approved to AS/NZS3133
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1 bore.
- Slotted head screws for the terminals.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Mechs labelled as FAN, LIGHT, HEAT, HEAT to be used in conjunction with 3IN1 fan/light/heater
- Standard colour is White-
Product specs

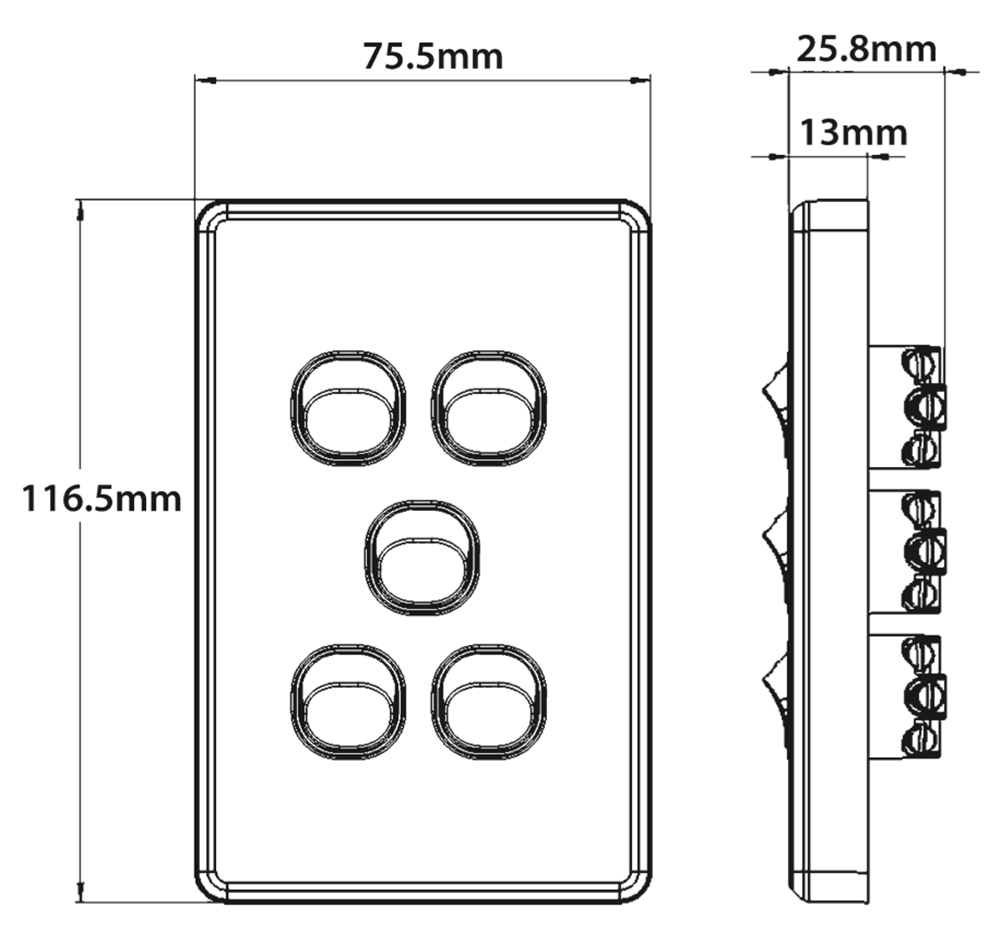

Dimensions
117mm x 76mm x 30mm
Voltage
250
Amperage
16
Switch rating
10
Poles
1
Material
Polycarbonate
Surface finish
Gloss
