PUSWVA3G
Switch Vertical Architrave 3 Gang 10AX 16A 250V ac
SKU
PUSWVA3G
Box Qty
10
Categories
Switches
Features
- Switches are rated 10AX/16A 250V~

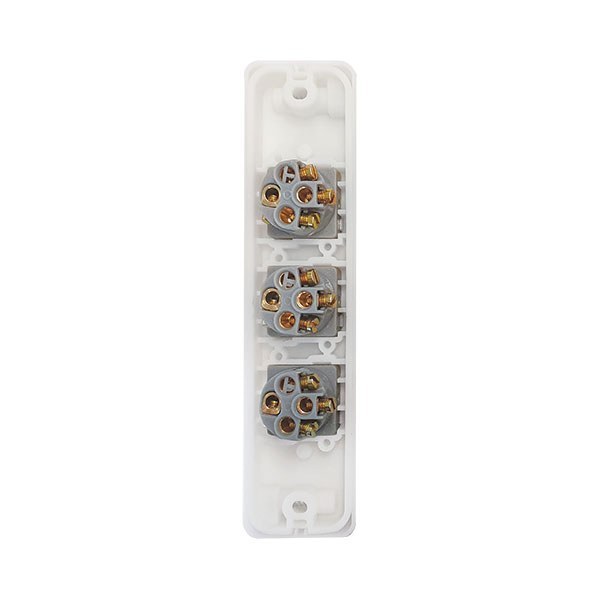

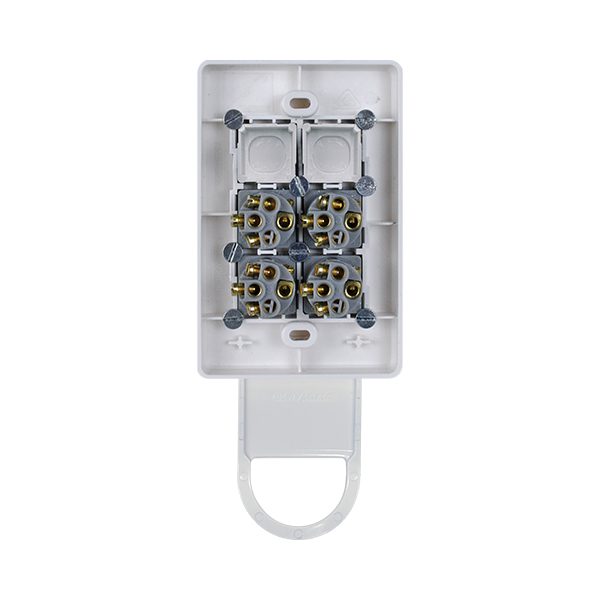

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore
- Slotted head screws for the terminals
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white.
- Approved to AS/NZS3133-
Product specs
Dimensions
144mm x 34mm x 30mm
Voltage
250
Amperage
16
Switch rating
10
Poles
1
Material
Polycarbonate
Surface finish
Gloss

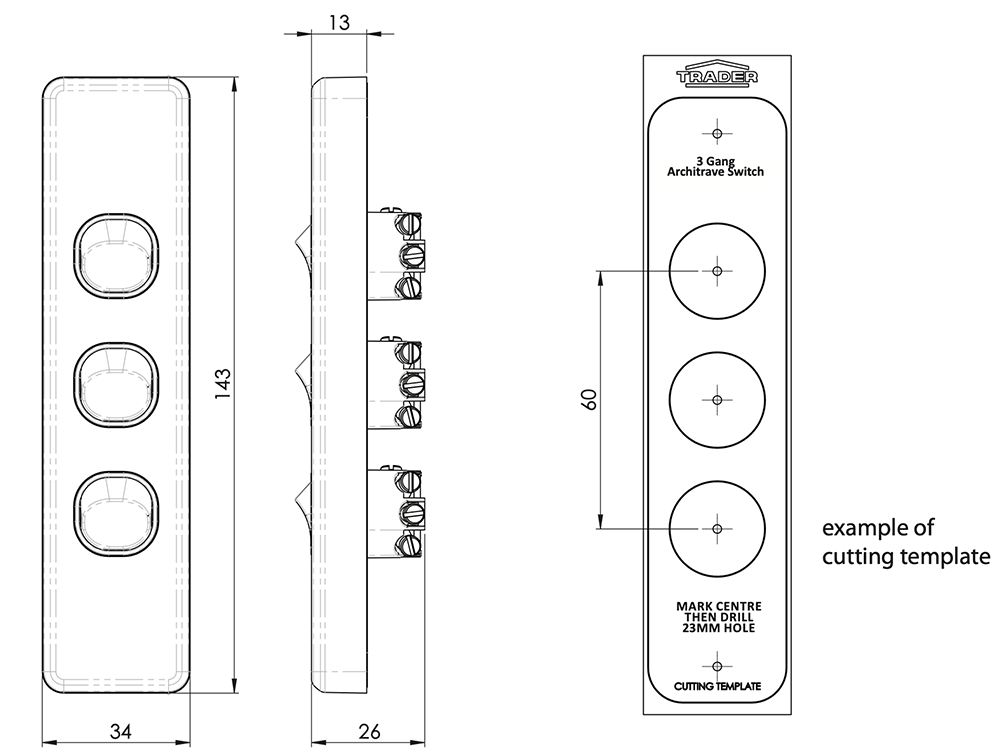

Puma PUSWVA3 G
Download to see product technical details.
Puma flyer
Puma
POWER POINTS & SWITCHES | Puma Range
Puma
Know Your Product - Watch this quick product overview to discover the key features and benefits.
