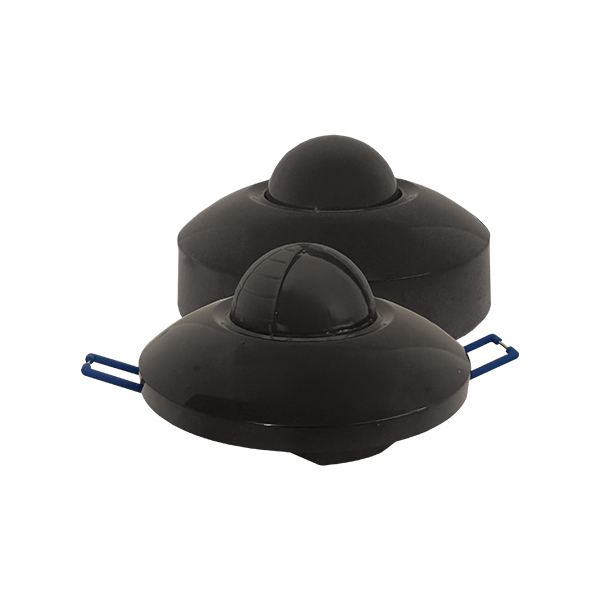

OWPIR360SBK
Motion Sensor Passive Infrared Indoor 360 Degrees 3 Metre Detection 40mm Cut Out Small Blk
SKU
OWPIR360SBK
Box Qty
1
Categories
Indoor Sensor
Features
- Sensor uses Passive Infrared Technology.
- Manual override for greater convenience.

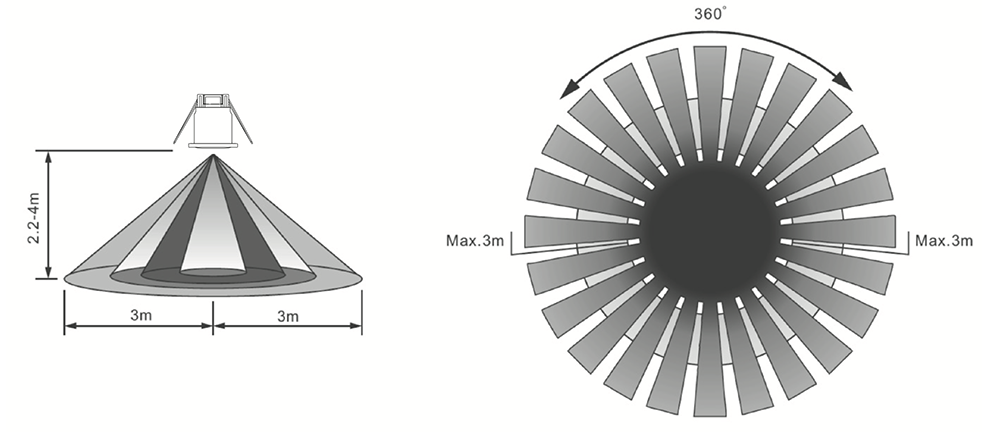

- 360 degree detection with range of 3m radius at a height of 2.4m - 4m.
- “ON” time between 10 seconds and 7 minutes - between sensing trigger.
- Suitable for loop in / loop out applications in ceilings.
- Easy mounting and adjustment.
- Parallel connections with multiple fittings.
- Rated Load: 800W Max and 400W for fluoro energy saving lamps.
- SBL (LED): 100W
- 40mm cut out.
- Colours available: White or Black.
- Depth into ceiling 51mm.
- Larger Terminals.
Product specs
Dimensions
65mm x 50mm x 67mm
Material
Polycarbonate
Surface finish
Matte
OWPIR360SBK Data Sheet
Arctic Owl Data Sheet
Arctic Owl
OWPIR360 Manual Override
Arctic Owl
OWPIR360S Instructions
Arctic Owl
