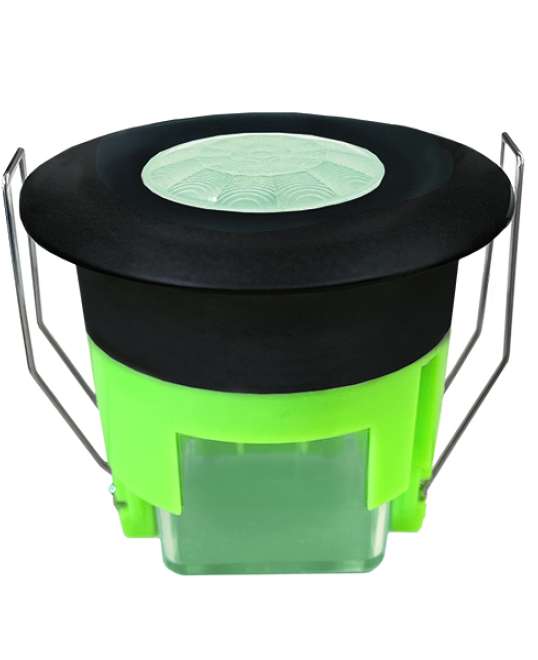

OWPIR360BK
Motion Sensor Passive Infrared Indoor 360 Degrees 3 Metre Detection 63mm Cut Out Blk
SKU
OWPIR360BK
Box Qty
1
Categories
Indoor Sensor
Features
- Sensor uses Passive Infrared Technology.
- Manual override.

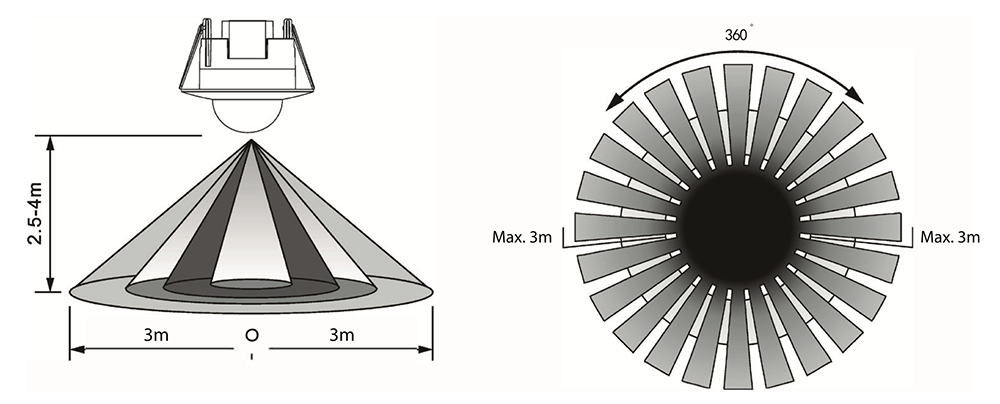

- 360 degree detection with range of 3m radius at a height of 2.4m - 4m.
- “ON” time between 10 seconds and 7 minutes - between sensing trigger.
- Suitable for loop in / loop out applications in ceilings.
- Easy mounting and adjustment.
- Parallel connections with multiple fittings.
- Rated Load: 2000W Max and 1000W for fluoro energy saving lamps.
- SBL (LED): 300W
- 63mm cut out.
- Colours available: White or Black.
- Depth into ceiling 57mm.
- Larger Terminals.-
Product specs
Dimensions
78mm x 75mm x 73mm
Wattage
2000
Voltage
240
Material
Polycarbonate
Surface finish
Matte

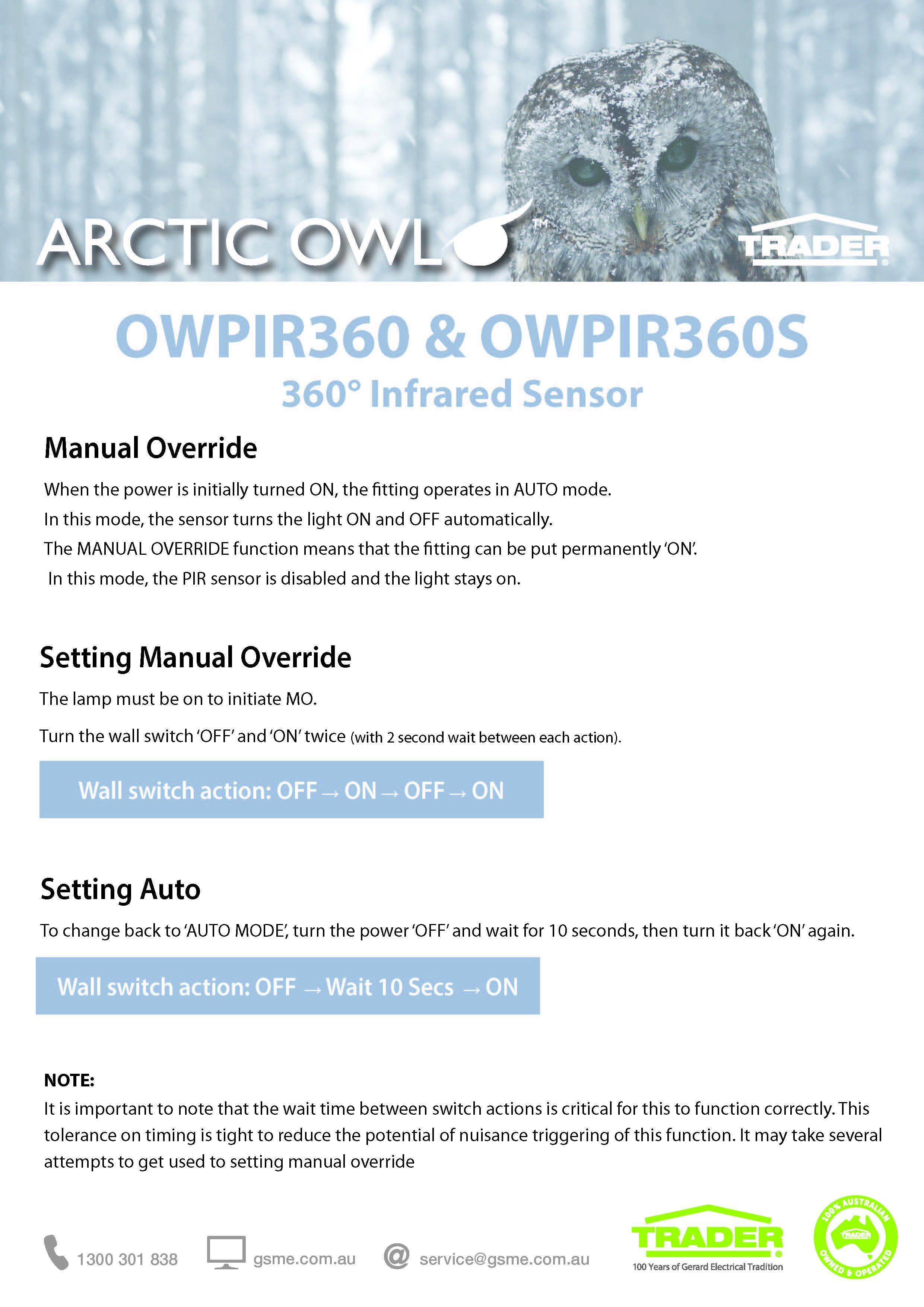

OWPIR360 Instructions
Download to see instruction details.
OWPIR360BK Data Sheet
Download to see product technical details.
Arctic Owl Datasheets
Arctic Owl
Download to see Arctic Owl Range Data Sheets.
Arctic Owl Indoor Flyer
Arctic Owl
Download to see Arctic Owl Indoor Range Flyer
SENSORS | Indoor
Arctic Owl
Know Your Product - Watch this quick product overview to discover the key features and benefits.
