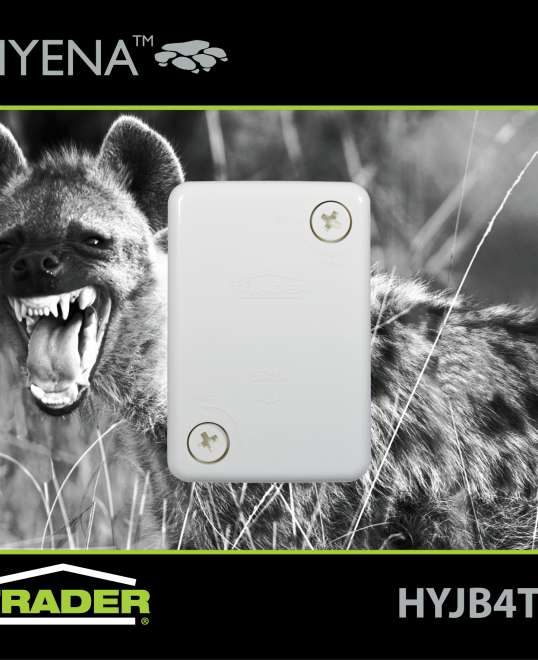

HYJB4TF
Junction Box Plastic with 4 Loose Terminals and Fast Fit Cover White
SKU
HYJB4TF
Box Qty
10
Categories
Junction Boxes
Features
- Junction box with 4 loose terminals.
- Cover has double start plastic threads for easy quick assembly to the base.
- Clean easy to break out entries for cable access.
- Baseplate has captive nails in position ready for use.
- Strong robust polycarbonate construction.
- Supplied with single screw connectors.
- Complies with AS/NZS3000: 2018.
- Clause 1.20.4.2 for Earthing Connectors.
- Current rating 40A-
Product specs
Dimensions
86mm x 86mm x 65mm
Module
Material
Polycarbonate
Surface finish
Gloss
Hyena HYJB4 TF
Download to see product technical details.
