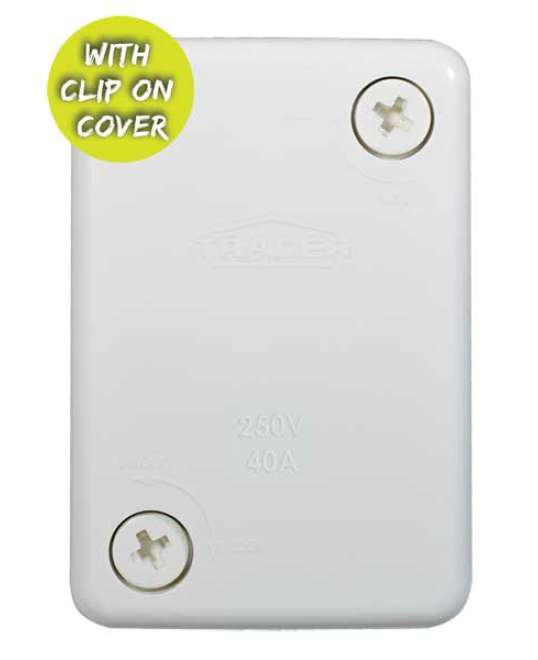

HYJB3TSC
Junction Box Plastic 3 Fixed Twin Screw Terminals 40A 250V ac Large Profile Fast Fit Clip Cover Wh
SKU
HYJB3TSC
Box Qty
10
Categories
Junction Boxes
Features
- Suitable for connecting cables 3 x 6mm2 or 4 x 2.52
- Terminal tunnels 6.0mm
- Current rating 40A
- Designed for single phase applications and the assembled is rated at 250V~
- Tunnel terminals meet the 80% ruling in clause 2.10.4.2 from AS/NZS3000
- 3 brass terminals suitable for joining into existing cables for those who prefer to have the terminations fixed I the base rather than loose insulated terminals in the box.
- ["The junction box uses a combination of easy side clips for those who need to assemble the box lid in place prior final fastening down","combined with the fast fix diagonally opposed cover screws."]
- The Junction box features the same overall size and cut out features seen in the other HYJB4T series products.-
Product specs
Dimensions
100mm x 68mm x 46mm
Voltage
250
Amperage
40
Material
Polycarbonate
Surface finish
Gloss
Hyena HYJB3 TSC
Download to see product technical details.
