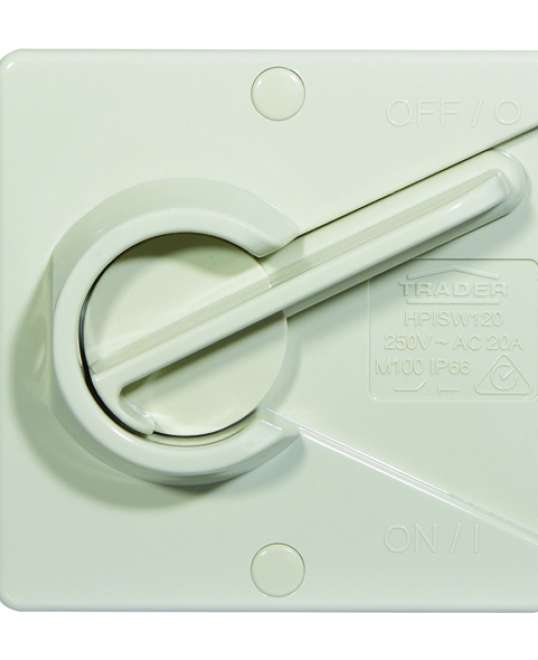

HPISW120
Isolator Switch Weatherproof IP66 20A 250V 1 Pole Small Grey
SKU
HPISW120
Box Qty
1
Categories
Isolators
Features
- The Hippo product is made from UV Stabilised Polycarbonate to avoid discolouring
- IP66 ideal for prevention against water or harmful objects that may compromise conventional light switches. Perfect for use in exterior applications, or damp/dusty environments such as building exteriors, carports, gardens or workshops
- Back mounting boxes that contain 20mm and 25mm plain entries
- Cover mounted switches for easier wiring and access
- Corner mounting screws for cover allows full rotation for access to different entry combinations
- Double pole as standard format only.
- Lock off facility
- Full AC23A rating performance for inductive motor applications
- Colour is Grey. Also available in Black by request. Please check availability.
- Note: The HPISW120 and (BK) models are a base mounted single pole Isolators that performs in accordance with AS/NZS 3133 with motor rating of M100, this model doesn’t use the corner mount screw system as the others and requires the base to be aligned in correct orientation when installing.
Product specs
Dimensions
86mm x 86mm x 86mm
Module
Material
Polycarbonate
Surface finish
Gloss
