BUC440RO

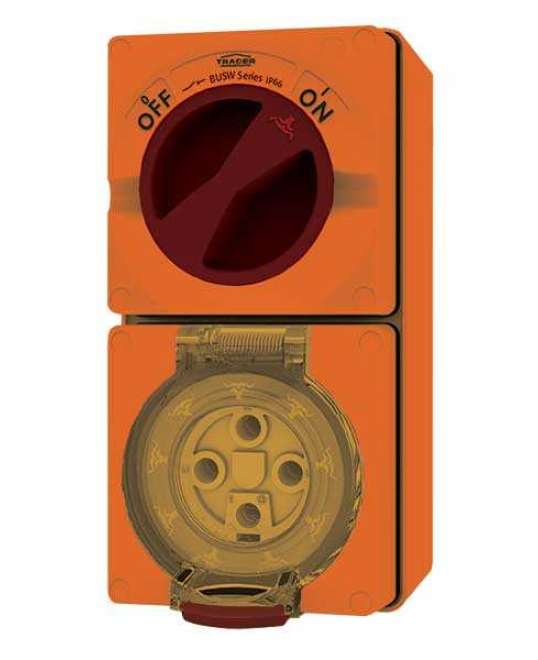

Combination Switched Socket IP66 40A 500V 4 Pin Chemical Resistant Orange
SKU
BUC440RO
Box Qty
1
Categories
RO Combo Switches
Features
- ["Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A to 32A","four-pin 10A to 50A and five-pin 10A to 50A designs.\nPhase links are factory fitted between switches and sockets.\nSmall Single phase Flat pin - 10A to 20A\nSize 1 Single & Three Phase - 10A- 20A\nSize 2 Single & Three Phase - 32A - 50A\nHeavy Duty terminals are standard on all products with Double Pole switching option as standard on 3 pin products.\nThe combination switch handle has two padlocking facilities (Oval Shape 11 x 9mm) so equipment can be safely isolated.\nSwitch is provided with LED fitment option (not supplied).\nCombination sockets feature a clear dustproof & hoseproof flap allowing simple viewing of sockets. The flap is also provided with a reliable spring-tensioned latch to keep dust & liquids out.\n• Recommended screw torque for corner cover screws 0.6Nm\n• Recommended torque for Earth\/Neutral fixed terminals 2Nm\n• Recommended torque for Switch terminals 2.5Nm\nPart bag contains twin screwed connector.\nChemical Resistant Orange for Acid Applications."]
Product specs
Amperage (A)
40
Voltage (V)
500
Poles (Pole)
2
Material
633630001
Surface Finish
633630005
