WOSPD140
SPD Surge Protect Device 1P 40kA 275V ac
SKU
WOSPD140
Box Qty
10
Categories
Surge Protection Device
Features
- Ratings and technical specifications in accordance with standards IEC/EN 1643-11,BS/EN 61643-11
- For use in switch boards where MEN configurations are present
- Pole No. 1P with removeable cartridge
- Max.continuous operating a.c.voltage Uc 275V
- Normal discharge current (8/20μs) In 20kA
- Maximum discharge current (8/20μs) Imax 40kA
- Voltage protection level Up ≤1.5kV
- Max.backup fuse/MCB 32A gL/32A
- Response time tA ≤25ns
- Operating temperature range Tu -40℃~80℃
- Operating State/Fault Indication Green/Red
- Cross-section area (Min.) 6mm²
- Cross-section area (Max.) 16mm²
- 35mm Din rail suitable
- IP20
- Housing polymer flammability rating UL94-V0
- Tightening torque 2.5Nm
- Drive type #2 Pozi-drive
- Strip length 14mm
- Replacement cartridge WOSPD140C -
Product specs

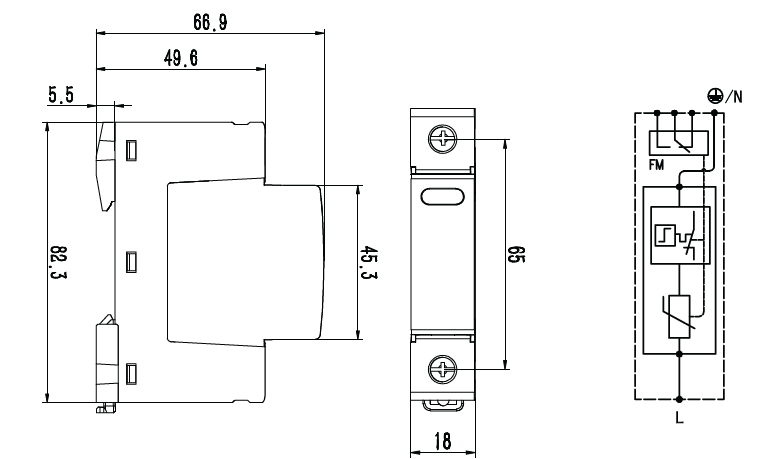

Dimensions
88mm x 19.5mm x 67mm
Voltage
275
Fault current
40
Module
1
Poles
1
Material
Polyamide
Surface finish
Gloss
