WORCD6240

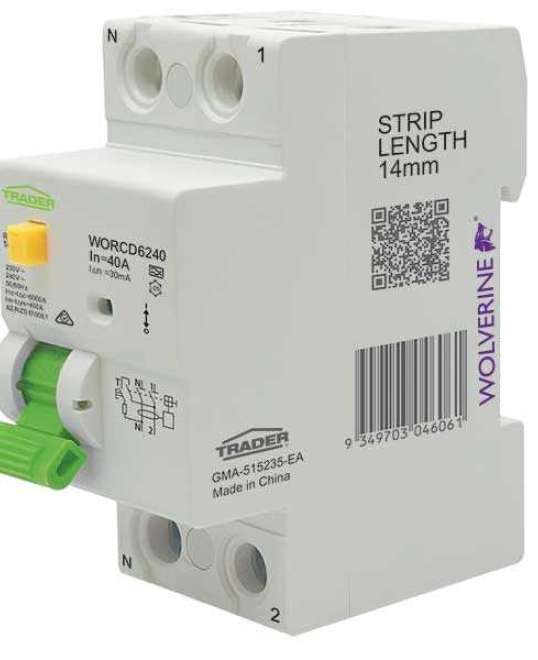

RCD Residual Current Device 6kA 2P 40A 230 240V ac 30mA Type A 2 Module Grey
SKU
WORCD6240
Box Qty
6
Categories
RCD
Features
- ["Wolverine Din Rail mounted RCDs (WORCD series) offer fast and flexible installation for safety of personal and equipment protection applications in domestic and small commercial environments. Being fully certified in accordance with standard AS\/NZS and IEC 61008-1 (Residual current circuit breakers for household and similar purposes). Providing protection against earth faults that may occur in equipment and reduce the effects of electric shock and save lives by cutting off supply if they have measured an imbalance between the live and neutral cables above the sensitivity level where current flowing in the live and neutral cables becomes imbalanced from current flowing to earth.\nThey feature easy-to-use terminals","din assembly and U-style busbar suitability. The Wolverine RCDs are available in type A sensing characteristic and ideal for applications for protection of general everyday use and available in 30mA operating current. Type A RCDs are sensitive to both sinusoidal currents and “unidirectional pulsed” currents","which may be present in modern electrical systems with electronic devices for rectifying the current or similar equipment. They are ideal for protection in applications for electronic components","inverters","class 1 IT & multimedia equipment","power supplies for class 2 equipment","lighting controls","induction hobs and washing machines.\nInstallation Instruction\nThis product MUST be installed by a licensed electrician.\nLine and Load can be top or bottom.\nTo avoid damage to RCD disconnect before insulation testing Connect the Neutral cable before the Line active cable.\n• Used in domestic installations","as well commercial electrical distribution systems.\n• Protection of circuits against short-circuit currents.\n• Protection of circuits against overload currents."]
Product specs
Amperage (A)
40
Voltage (V)
240
Fault Current (kA)
6
Module
2
Poles (Pole)
2
Material
633630003
Surface Finish
633630005
