WONBPM7
Neutral Bar Panel Mount 7 Hole with Insulating Cover Transparent Grey
SKU
WONBPM7
Box Qty
10
Categories
Neutral Bar
Features

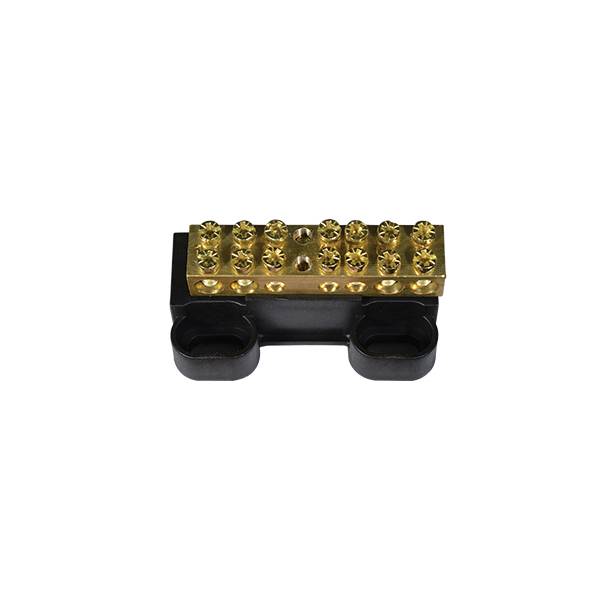

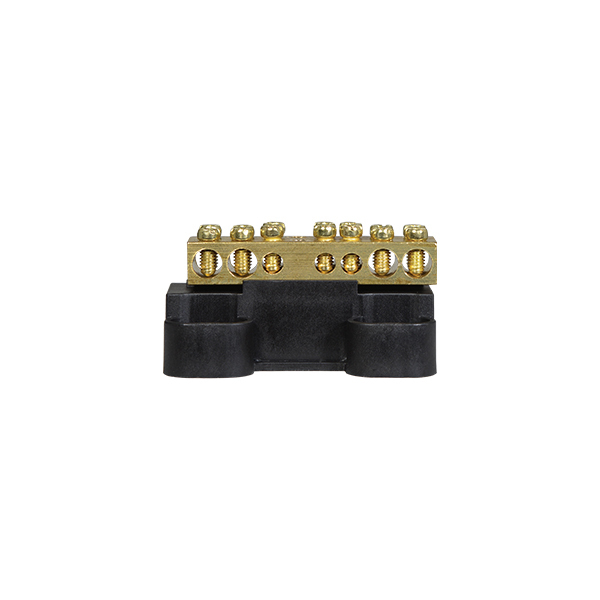

- Wolverine Neutral Bar Link Panel Mount
- 500V 110A 7 Hole Panel mountable Neutral Bar Link with two screws per tunnel.
- Black Insulated cover and base with large mounting apertures.

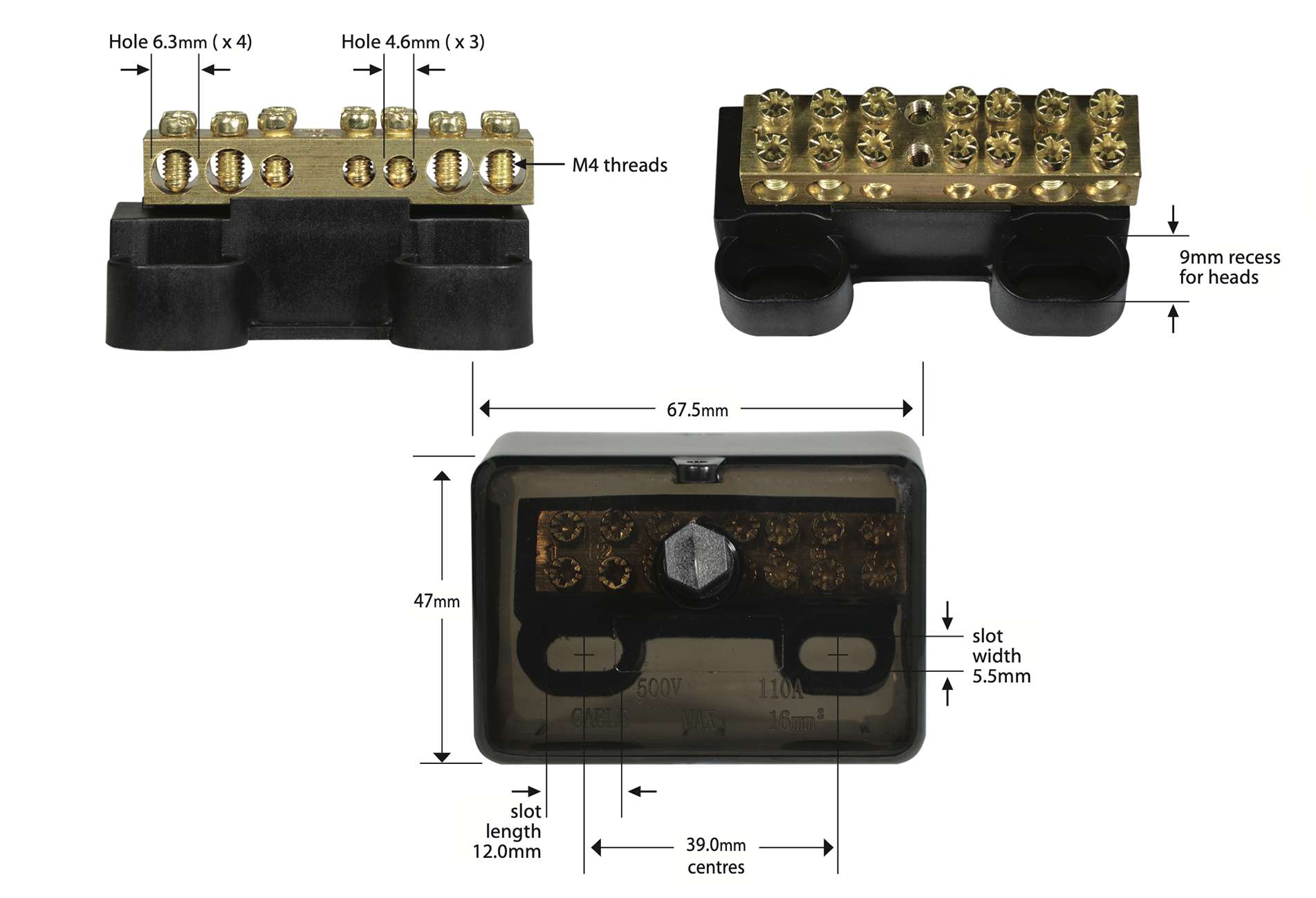

- Dimensions: 67.5 x 47 x 47mm. Mounting centres: 39mm with 12 x 5.5 mm slots.
- 4 tunnels, 6.3mm diameter accommodate 1 x 16mm2 cable.
- 3 tunnels, 4.6mm diameter accommodate 1 x 10mm2 cable.
Product specs
Voltage
500
Amperage
110
Module
7
Material
Polyamide
Surface finish
Gloss
