WOMSW3100
Main Switch 3 Pole 100A 400V 415V ac 3 Module Grey
SKU
WOMSW3100
Box Qty
4
Categories
Main Switch
Features
- Wolverine Din Rail mounted Main Switch Isolators (WOMSW series) offer fast and flexible installation and is suitable for residential and light commercial applications. Offering reliable performance for board configurations suited up to 100A and utilizing red switch toggles for easy identification along with the green/red indication of internal contact positions. Perfect for applications where isolation is required either in the main or in local sub boards the WOMSW are only switches and do not operate to provide additional circuit protection, other models in Wolverine range offer this application. Installation Instruction This product MUST be installed by a licensed electrician. Line and Load can be top or bottom. To avoid damage to Main Switch disconnect before insulation testing Connect the Neutral cable before the Line active cable.
- Used in domestic installations, as well commercial electrical distribution systems.
Product specs

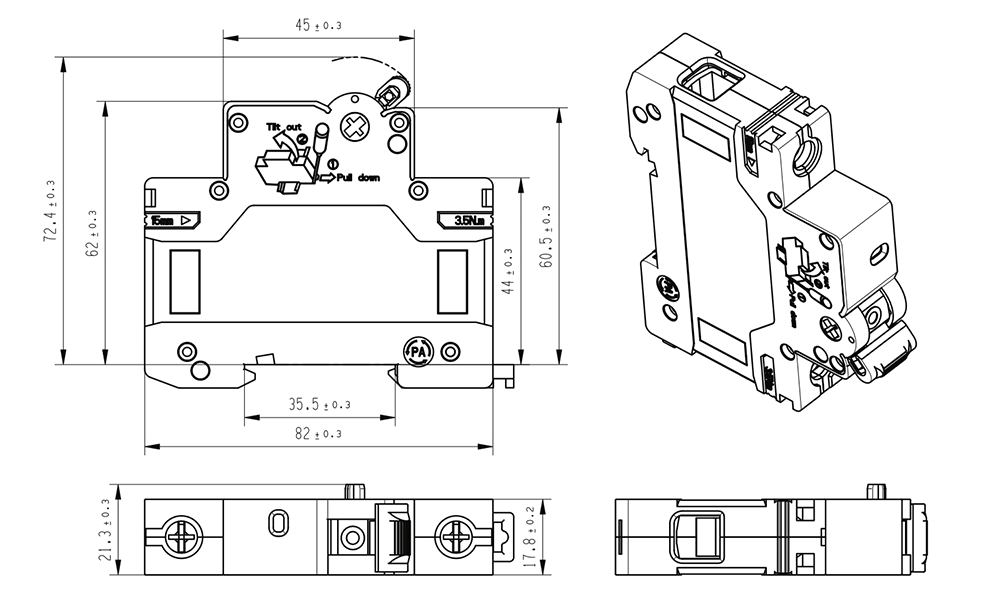

Dimensions
82mm x 54mm x 78mm
Voltage
415
Amperage
100
Module
3
Poles
3
Material
Polyamide
Surface finish
Gloss
Wolverine Main Switch Instructions
Wolverine
Download to see product technical details.
Wolverine Range Brochure
Wolverine
Download to explore the full Wolverine range in depth.
Why Choose Wolverine
Click to discover why Wolverine is the ideal choice for your needs!
Wolverine WOMSW3100
Download to see product technical details.
Wolverine Range Flyer
Wolverine
Download to explore the full Wolverine range.
Wolverine Data Sheet
Wolverine
Download to see technical details for the complete Wolverine range.
CIRCUIT PROTECTION | Wolverine Range
Know Your Product - Watch this quick product overview to discover the key features and benefits.
