SNSWV3GBB
Switch Vertical 3G 16AX 20A 250V Black Cover Black Grid
SKU
SNSWV3GBB
Box Qty
10
Categories
Switches
Features
- Switches are rated 16AX/20A 250V~ and approved to AS/NZS60669-1
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres

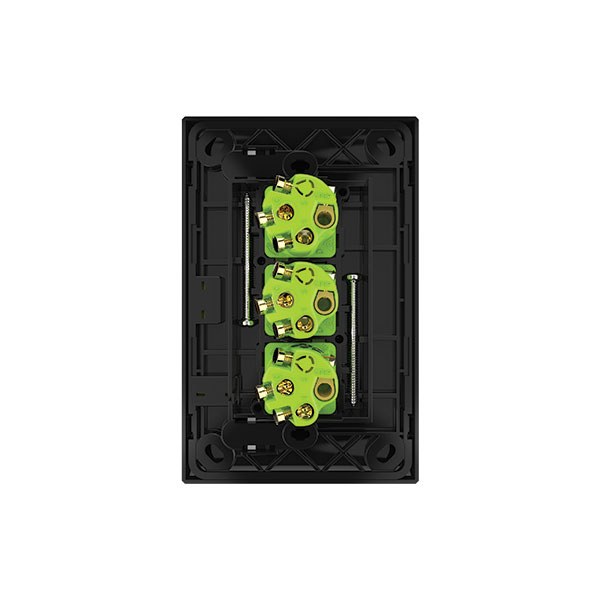

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore
- Slotted head screws for the terminals
- Uses ‘Cat Flap’ screw covers for IP rating or mounting screws
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white. Available in Black, White/Silver and Black/Silver - Please check availability.
- Plates suit Trader Meerkat MESWC mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories-
Product specs

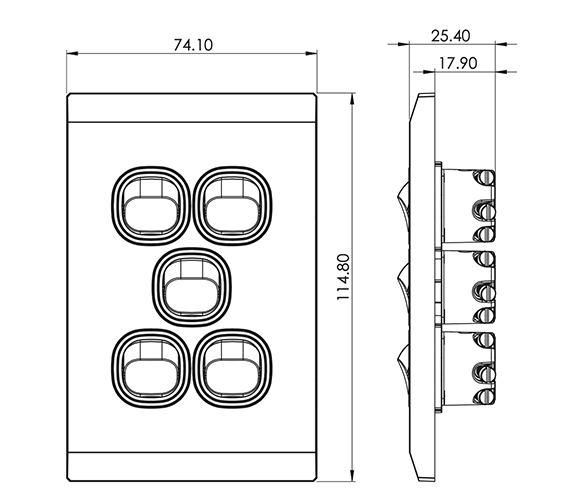

Dimensions
115mm x 73mm x 30mm
Voltage
250
Amperage
20
Switch rating
16
Poles
1
Material
Polycarbonate
Surface finish
Glass Look
Snow Leopard SNSWV3 GBB
Download to see product technical details.
