SNSWPV1GBB

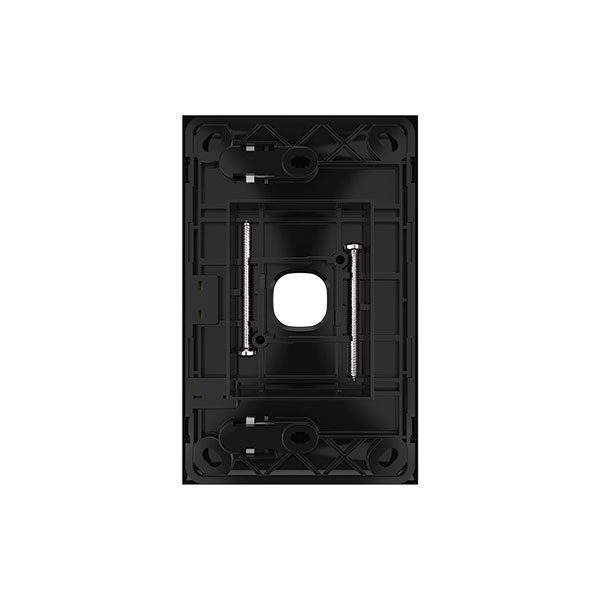

Switch Plate Vertical 1G Less Mech Black Cover Black Grid
SKU
SNSWPV1GBB
Box Qty
10
Categories
Plates
Features
- Switches are rated 16AX/20A 250V~ and approved to AS/NZS60669-1
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore
- Slotted head screws for the terminals
- Uses ‘Cat Flap’ screw covers for IP rating or mounting screws
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white. Available in Black, White/Silver and Black/Silver - Please check availability.
- Plates suit Trader Meerkat MESWC mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories-
Product specs
Dimensions
115mm x 73mm x 7mm
Voltage
250
Switch rating
16
Poles
1
Material
Polycarbonate
Surface finish
Glass Look
Why Choose Snow Leopard
Download to see product technical details.
Snow Leopard Flyer
Snow Leopard
Download to see product technical details.
Data Sheets Snow Leopard
Download to see product technical details.
Snow Leopard SNSWPV1 GBB
Download to see product technical details.
Snow Leopard Range Flyer
Snow Leopard
Download the Snow Leopard Range Flyer to see Australia’s most favourite switch style
POWER POINTS & SWITCHES | Snow Leopard
Snow Leopard
Know Your Product - Watch this quick product overview to discover the key features and benefits.
