SNPPSW2GBS
Power Point Switched 2G 10A 250V with Removable Extra Switch 16AX 20A Black Cover Silver Grid
SKU
SNPPSW2GBS
Box Qty
5
Categories
Power Points
Features
- Socket outlets approved to AS/NZS3112
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm suit 4 x 1.5mm2
- Combination head screws for the socket terminals
- Uses 'Cat Flap' screw covers for IP rating mounting screws
- Dolly indicator colour green
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white. Available in Black, White/Silver and Black/Silver - Please check availability-
Product specs

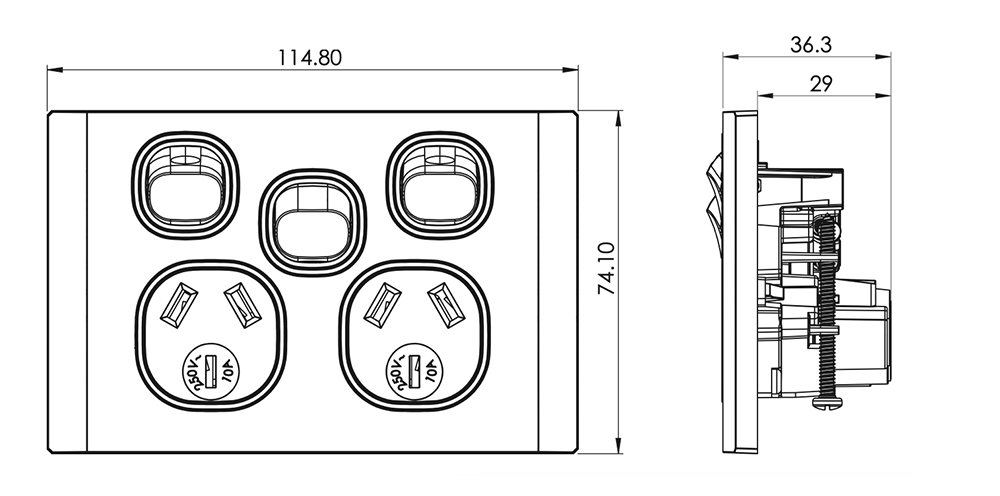

Dimensions
115mm x 73mm x 35mm
Voltage
250
Amperage
20
Switch rating
16
Poles
1
Material
Polycarbonate
Surface finish
Glass Look
Snow Leopard SNPPSW2 GBS
Download to see product technical details.
