PUSWVA1GVP
Switch Vertical Architrave 1 Gang 10AX 16A 250V ac Vandal Proof
SKU
PUSWVA1GVP
Box Qty
10
Categories
Switches
Features
- Switches are rated 10AX/16A 250V~ and approved to AS/NZS60669-1

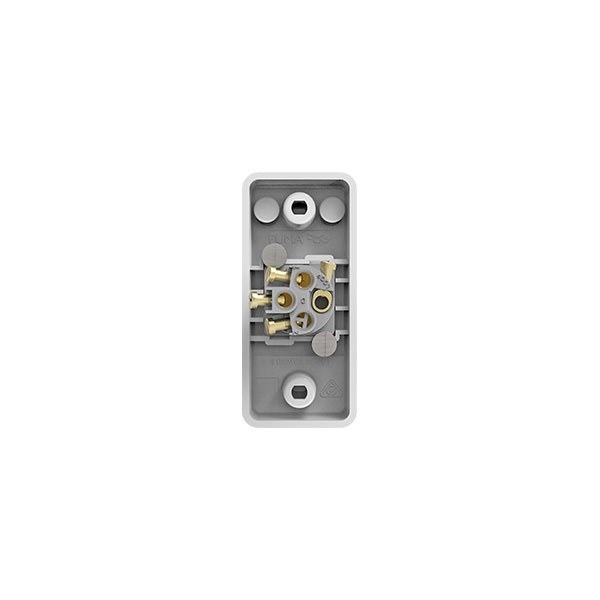

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore
- Slotted head screws for the terminals
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white. Black also stocked - please check availability. -
Product specs

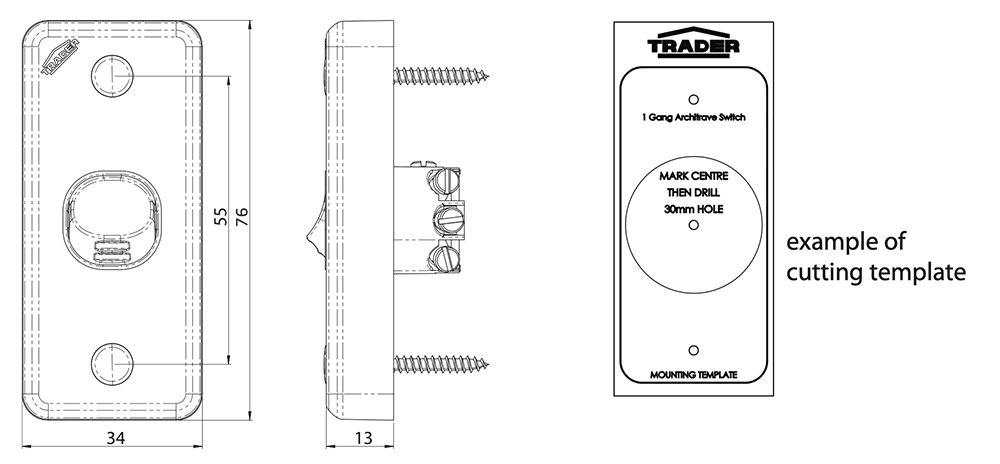

Dimensions
77mm x 35mm x 30mm
Voltage
250
Amperage
16
Switch rating
10
Poles
1
Material
Polycarbonate
Surface finish
Gloss
Data Sheets Puma VP
Download to see product technical details.
Puma PUSWVA1 GVP
Download to see product technical details.
