PUSWPV4G

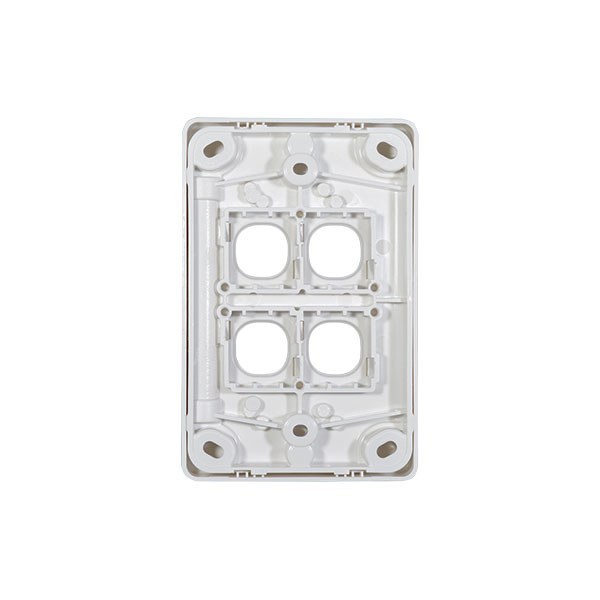

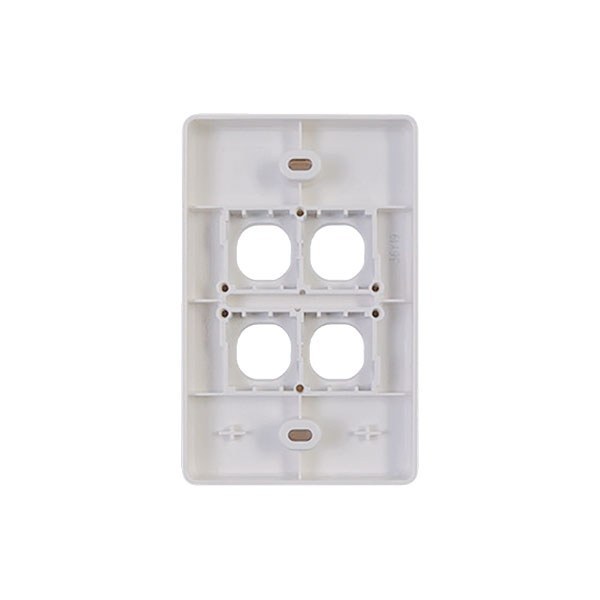

Switch Plate Vertical 4 Gang Less Mech
SKU
PUSWPV4G
Box Qty
10
Categories
Plates
Features
- Switches are rated 10AX/16A 250V~ and approved to AS/NZS3133
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1 bore.
- Slotted head screws for the terminals.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Standard colour is white. Black also stocked - please check availability.
- Plates suit Trader Meerkat MESW mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories-
Product specs
Dimensions
117mm x 76mm x 13mm
Voltage
250
Switch rating
10
Poles
1
Material
Polycarbonate
Surface finish
Gloss
Why Choose Puma
Download to see product technical details.
Puma flyer
Puma
Download to see product technical details.
Data Sheets Puma
Download to see product technical details.
Puma PUSWPV4 G
Download to see product technical details.
Puma Range Flyer
Puma
Download the Puma Range Flyer to see Australia’s most favourite switch style
Puma 4x4 Flyer
Puma
Download the Puma 4x4 Flyer to see Australia’s most favourite switch style
POWER POINTS & SWITCHES | Puma Range
Puma
Know Your Product - Watch this quick product overview to discover the key features and benefits.
