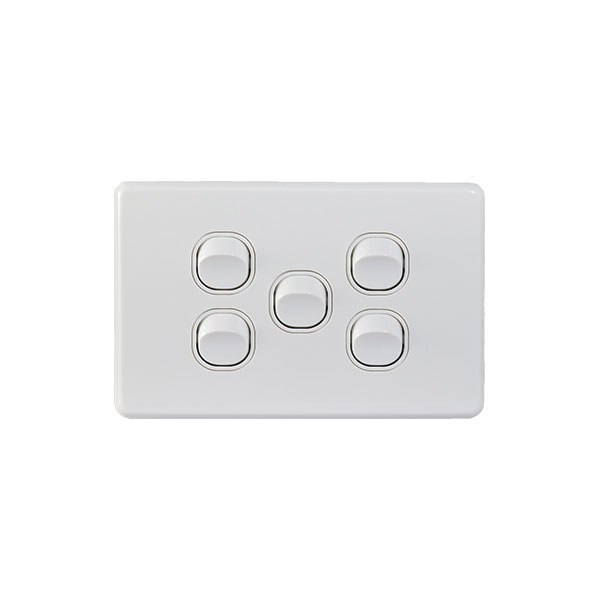

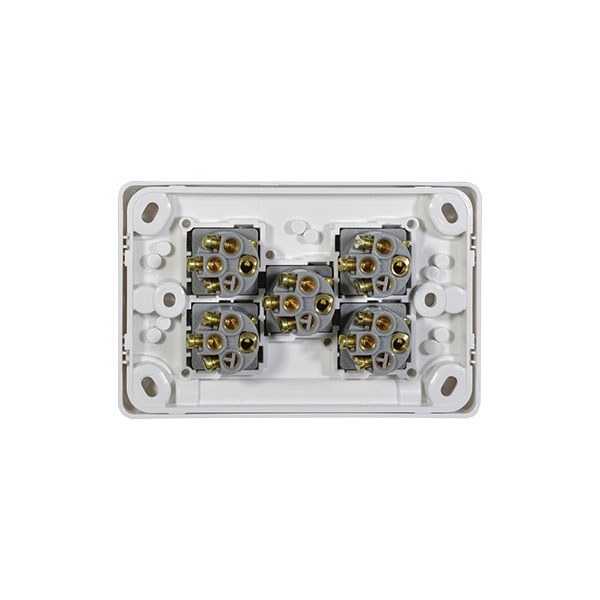

PUSW5GVP
Switch Horizontal 5 Gang 10AX 16A 250V ac Vandal Proof
SKU
PUSW5GVP
Box Qty
5
Categories
Switches
Features
- Switches approved to AS/NZS3133.
- Switches are rated 10AX/16A 250V~ and approved to AS/NZS3133.
- Mech back-up security screws on rear of installed mechs.
- Less Mech plates require security screws (HYSCREWS) to be supplied separately
- Oval screw caps for extra adjustment on wall (no removable cover).
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1 bore
- Slotted head screws for the terminals.
- Plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- PUSW4GVP to PUSW6GVP Impact rating IK07 to IEC62262:2002
- Standard colour is white. Black also stocked - please check availability.
- Plates suit Trader Meerkat MESW mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories.
Product specs
Dimensions
117mm x 76mm x 30mm
Voltage
250
Amperage
16
Switch rating
10
Poles
1
Material
Polycarbonate
Surface finish
Gloss
