PUPP4G
Power Point Switched 4 Gang 10A 250V ac Flush Mount 13mm Depth with Custom Mounting Bracket
SKU
PUPP4G
Box Qty
1
Categories
Power Points
Features
- 183mm mounting centers
- Supplied 2 gang wall bracket
- Pre-wired with a 240mm cable loop for easy installation to suit 1 power circuit
- 13mm thick
- Single Pole switched
- 10A 250V
- ["Covers","plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow."]
- Approved to AS/NZS3112.
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power Point terminals have 5.8mm bore to suit 4 x 2.5mm2 cable.
- Standard colour is White. Also available in Black - please check availability-
Product specs
Dimensions

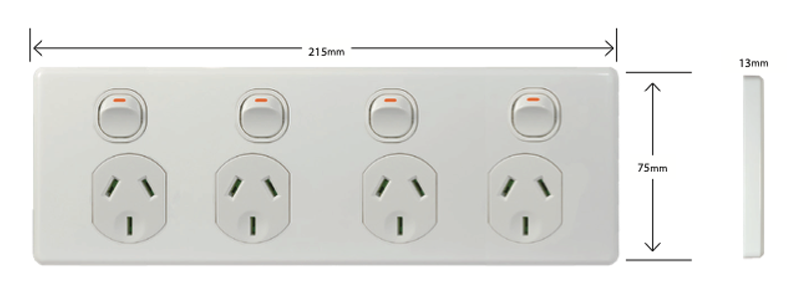

215mm x 75mm x 30mm
Voltage
250
Amperage
10
Poles
1
Material
Polycarbonate
Surface finish
Gloss
Puma PUPP4 G
Download to see product technical details.
