PUPP1GVP
Power Point Switched 1 Gang Double Pole Shuttered 10A 250V ac Vandal Proof
SKU
PUPP1GVP
Box Qty
10
Categories
Power Points
Features
- Power points approved to AS/NZS3112
- Power points have Shutters and are Double Pole
- Oval screw caps for extra adjustment on wall (no removable cover)

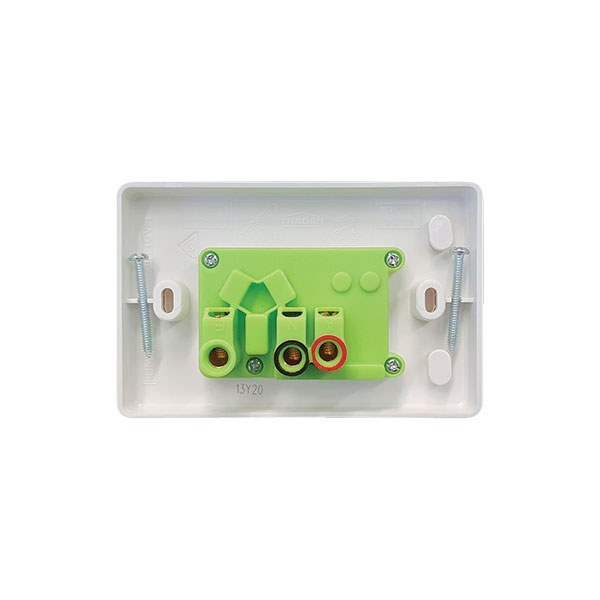

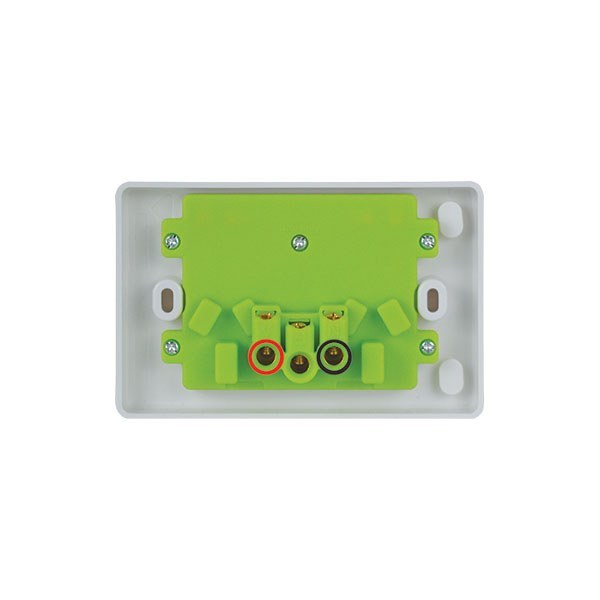

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 5.7mm bore to suit 4 x 2.5mm2 cable
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres
- Plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Shutter operates from either earth or neutral
- PUPP1GVP Impact rating IK09 to IEC62262:2002.
- Standard colour is white. Black also stocked - please check availability.-
Product specs

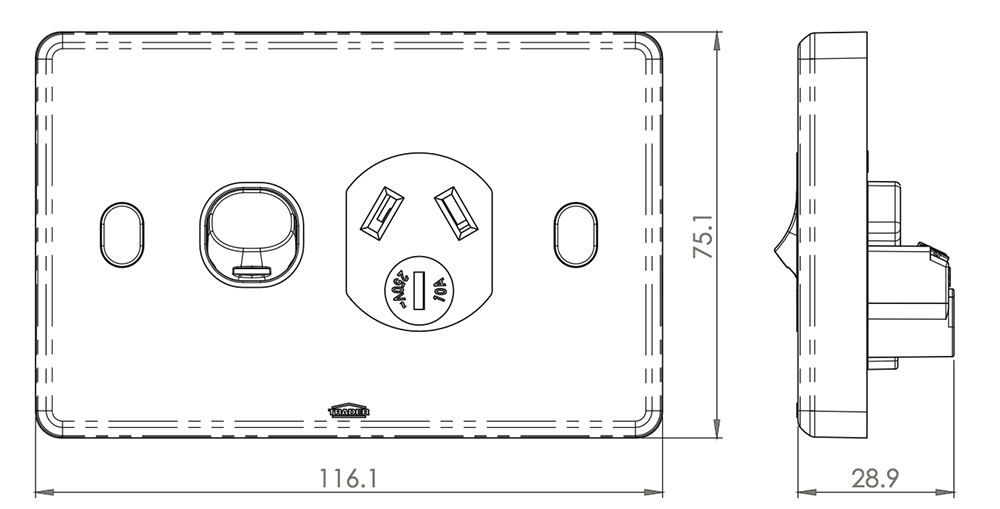

Dimensions
117mm x 76mm x 35mm
Voltage
250
Amperage
10
Poles
2
Material
Polycarbonate
Surface finish
Gloss

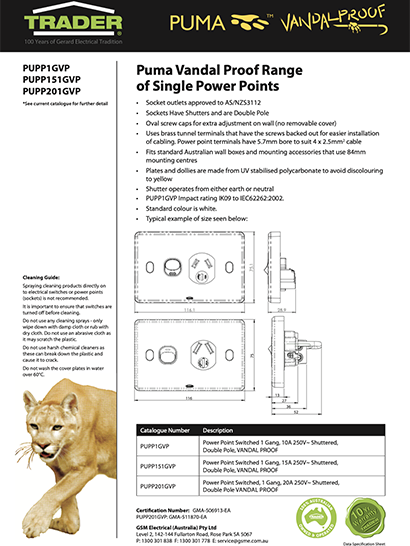

Data Sheets Puma VP
Download to see product technical details.
Puma PUPP1 GVP
Download to see product technical details.
