PUPP152GVP
Power Point Switched 2 Gang Double Pole Shuttered 15A 250V ac Vandal Proof
SKU
PUPP152GVP
Box Qty
10
Categories
Power Points
Features
- Power points have Shutters and are Double Pole.
- Oval screw caps for extra adjustment on wall (no removable cover).
- Uses brass tunnel terminals that have the screws backed out for easier installation. of cabling. Power point terminals have 5.7mm bore to suit 4 x 2.5mm2 cable.
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.
- Plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Power points achieve IK09 to IEC62262:2002.
- Standard colour is white. Also available in Black, Red and Blue. Please check availability.
- Shutter operates from either earth or neutral
- Power points approved to AS/NZS3112.-
Product specs

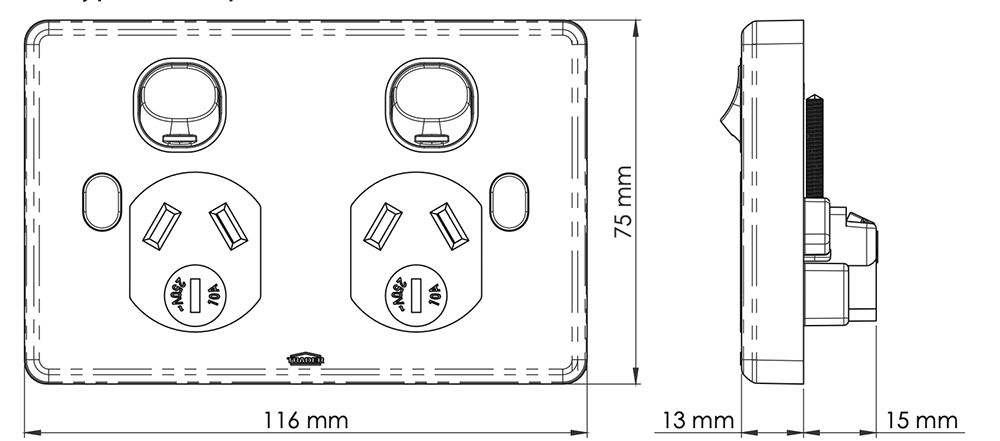

Dimensions
117mm x 76mm x 30mm
Voltage
250
Amperage
15
Poles
2
Material
Polycarbonate
Surface finish
Gloss
Data Sheets Puma VP
Download to see product technical details.
Puma PUPP152 GVP
Download to see product technical details.
