PMRLSUP
Suppressor Inductive Load RC Snubber Red Lion for Powermesh Issues with Exhaust Fans and Heat Lamps
SKU
PMRLSUP
Box Qty
1
Categories
Accessory
Features
- Prevents inductive "kickback" from AC coils

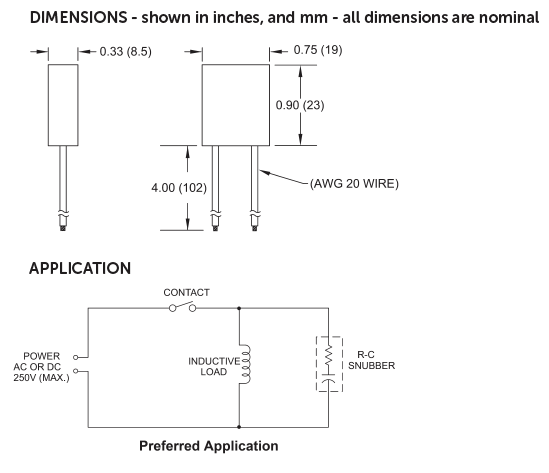

- Extends relay contact life by suppressing arcing GENERAL DESCRIPTION The R-C Snubber is intended to suppress the “inductive kick” from motors, solenoids or relay coils. High energy noise spikes are generated whenever current is interrupted through an inductive load. These noise spikes may interfere with associated equipment causing erratic operation and may also accelerate relay contact wear. Applied across an inductive load, the R-C snubber suppresses the noise spikes and extends contact life. SPECIFICATIONS 1. R-C Value: 0.1 μf, 47 1/2 Watt (±30%) 2. Max. Line Voltage: 250 V rms or 250 VDC 3. Frequency: DC to 62 Hz 4. Peak Pulse Voltage: 1200 V max.
Product specs
Dimensions
120mm x 19mm x 8mm
Voltage
250
Material
Polycarbonate
Surface finish
Gloss
