PMPUSWV1G3BKS

Powermesh Multi Purpose Switch Vertical 1 Button 10AX 240V 3 Wire Only Black

SKU

PMPUSWV1G3BKS

Box Qty

Categories

Multi Purpose Switches

Standard product supplied in classic Puma architecture.
Covers available in Trader Leopard, Clouded Leopard & Snow Leopard (See Data Sheet "PM14")
Approved to AS/NZ60669.2.1 & AS/NZS CISPR15.

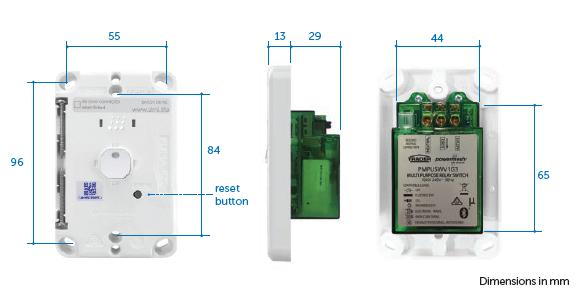

Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.
Switch terminals have 4mm bore to suit 1.5mm 2 cable.
Soft touch control.
Indicator displays the on/off state.
Software control using the Zimi app, available on the Google Play and App Store.
Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
Standard colour is white. Available in Black. Please check availability.
Rating 240V AC 50Hz, 10AX
Neutral connection required (3 wire)
Multi way switching with multiple devices using 'Behaviour link' (configured using the Zimi app).
M60 motor rating
Inbuilt scheduling.
Power outage recovery.
Control anywhere in the world via the Internet with the Zimi Cloud Connect (Product Code: PMZCLOUDV1)-
