PMBUSW

Powermesh Multi Purpose Switch 1 Button 10AX 240V 3 Wire Only Buffalo Enclosure IP66

SKU

PMBUSW

Box Qty

1

Categories

Weatherproof Switch

Features

  • Approved to AS/NZ60669.2.1 & AS/NZS CISPR15.
  • Switch terminals have 4mm bore to suit 1.5mm 2 cable.
  • Soft touch control.
  • Indicator displays the on/off state.
  • Software control using the Zimi app, available on the Google Play and App Store.
  • Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
  • Rating 240V AC 50Hz, 10AX.
  • Neutral connection required (3 wire).
  • Multi way switching with multiple devices using 'Behaviour link' (configured using the Zimi app).
  • M60 motor rating.
  • Inbuilt scheduling.
  • Power outage recovery.
  • Control anywhere in the world via the Internet with the Zimi Cloud Connect. (Product Code: PMZCLOUDV1)
  • IP66.
  • Suits mounting on Buffalo boxes/enclosures.
  • Can multi-gang with other Buffalo products.-

Product specs

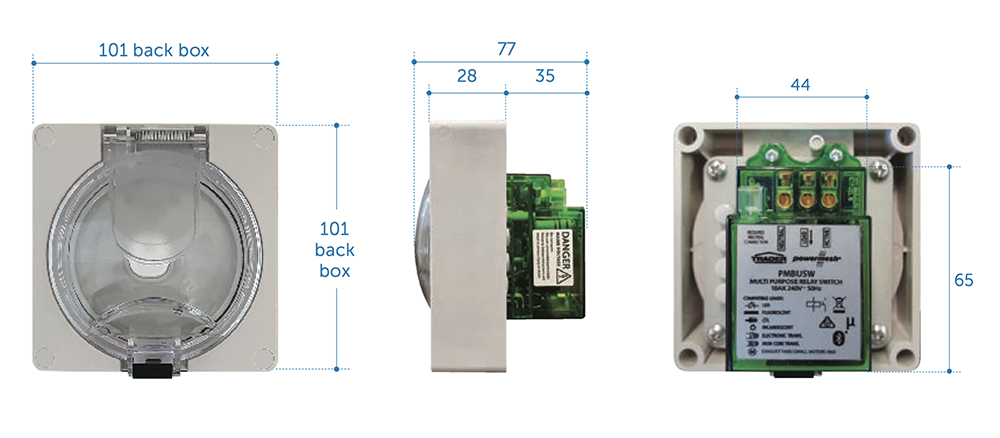

PMBUSW Specs

Dimensions

110mm x 100mm x 100mm

Voltage

240

Switch rating

10

Poles

1

Material

Polycarbonate

Surface finish

Gloss

PMBUSW Resources

Powermesh PMBUSW

Download to see product technical details.
DOWNLOAD
