OWPIRODLOBK

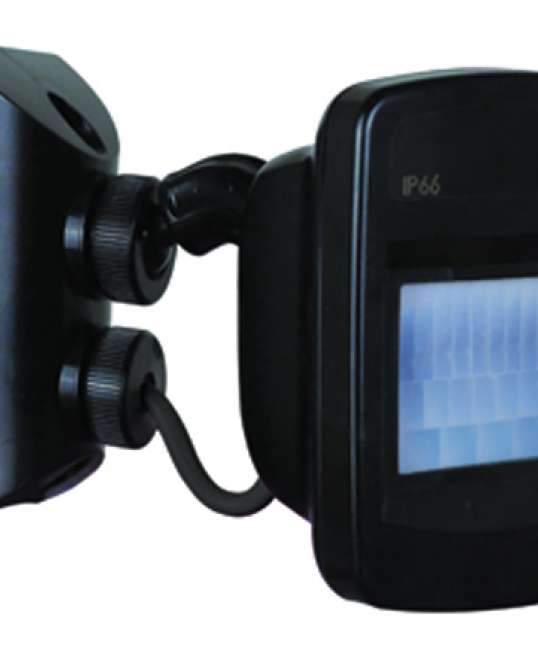

Motion Sensor Passive Infrared Outdoor IP66 3 Wire 110 Degrees 18 Metre Detection Less Override Blk
SKU
OWPIRODLOBK
Box Qty
1
Categories
Outdoor Sensor
Features
- Sensor uses Passive Infrared technology
- OWPIROD models can be manually overridden with built-in override function.
- OWPIRODLO models can be overridden with separate override switches.
- 110° detection up to 18 metres
- Suitable for installing on walls and ceiling both interior and exterior
- Fits standard mounting blocks using 84mm centres (example: HYSMB2025)
- 3 wire design (Active, Neutral, Sensor load) for greater reliability
- Relay in circuit allows for loads up to 2400W (incandescent)
- Easy mounting and adjustment
- Easy sensing, light level and on time adjustment
- LED compatible
- IP66 Rating
- Minimum load <10W
- Must be installed by a licenced electrician
- Screw caps included-
Product specs
Dimensions
114mm x 72mm x 166mm
Wattage
2400
Voltage
240
Material
Polycarbonate
Surface finish
Matte
OWPIRODLO Instructions
Download to see instruction details.
OWPIRODLOBK Data Sheet
Download to see product technical details.
Arctic Owl Outdoor Flyer
Arctic Owl
Download to see Arctic Owl Outdoor Range Flyer
Arctic Owl Datasheets
Arctic Owl
Download to see Arctic Owl Range Data Sheets.
