MESWCDP

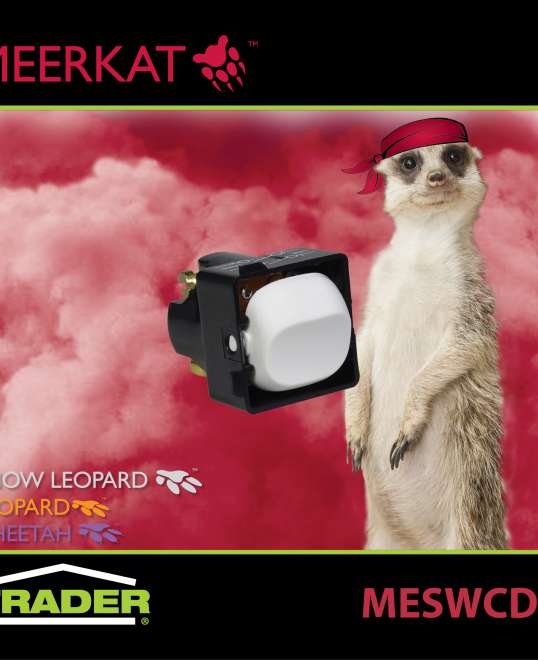

Switch Mech Double Pole 10AX 250V ac White Cats Eye Dolly Suits SEN SN CL LE CH
SKU
MESWCDP
Box Qty
5
Categories
Cat's Eye
Features
- MESWC (was LESWM) - approved to AS/NZS60669-1.
- MESW32C (was LESW32M) and MESW32COVEN (was LESWOV32M) approved to AS/NZS3133.
- Designed to clip into Snow Leopard, Clouded Leopard and Leopard switch plates, also fits all Trader Ranges and many others.
- Uses brass tunnel terminal that have the screws backed out for easier installation of cabling. Switches are single pole two way with looping terminal and suit 4 x 1.5mm2 cables with 4.1mm bore.
- Slotted head terminal screws, and backed out for easy installation.
- Cat’s Eye dolly styling.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
Product specs
Dimensions
20mm x 20mm x 30mm
Module
Material
Polycarbonate
Surface finish
Gloss
Meerkat Data Sheet
Meerkat
Download to see technical details for the complete Meerkat range.
Why Choose Meerkat
Download to see product technical details.
Meerkat Range Flyer
Meerkat
Download to explore the full Meerkat range.
Meerkat MESWCDP
Download to see product technical details.
Meerkat Matrix
Meerkat
The guide to the mechs and how best to use them with our Cat Ranges.
