MERJ6ACM
Data Outlet RJ45 Jack Clip in Mech Cat 6A White
SKU
MERJ6ACM
Box Qty
4
Categories
TV & Data
Features
- The MERJ6ACM registered jack (RJ-45 style) is perfect for ethernet connecting hardware applications in the office or at home and provides Cat 6A performance, capable of supporting data transfer rates up to 10Gbps at a maximum bandwidth of 500MHz.
- Tested in accordance and complies with AS/CA S008 2020
- Complies with IEC60603-7 section 5.7 connecting hardware, including plugs and sockets of all designs.
- Complies with IEC 60603-7 Clause 6.4.2 for Voltage proof where connecting hardware shall have dielectric withstand capability of 1.5kV for 60 s.
- Complies with IEC 60512, Test 4a for 1000 VDC or AC peak contact to all contacts.
- Complies with IEC 60512, Test 4a for 1500 VDC or AC peak all contact to shield.

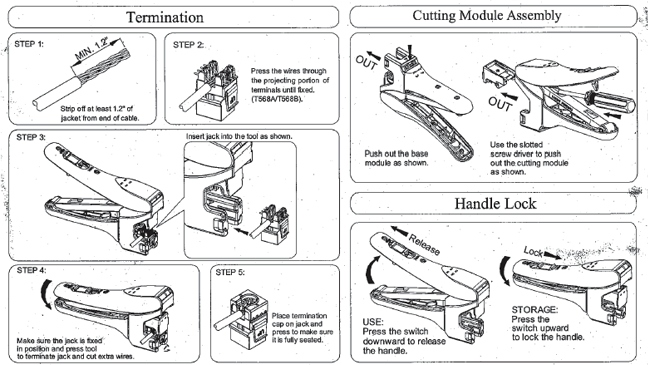

- Suitable for termination using a 110 tool or MERJ6ACMTT, quick cable clip termination tool as shown in instructions. (Note: this model does not suite a Krone tool termination)
- Kit comes with cable clip that is compatible with TRADER wall plate apertures.
- Available colour: White, MERJ6ACM also available in Black.-
Product specs
Dimensions
25mm x 20mm x 30mm
Amperage
6
Material
Polycarbonate
Surface finish
Gloss
Meerkat MERJ6 ACM
Download to see product technical details.
