LESWVA1GBK
Switch Vertical Architrave 1 Gang 16AX 20A 250V Black
SKU
LESWVA1GBK
Box Qty
10
Categories
Switches
Features
- Switches are rated 16AX/20A 250V~

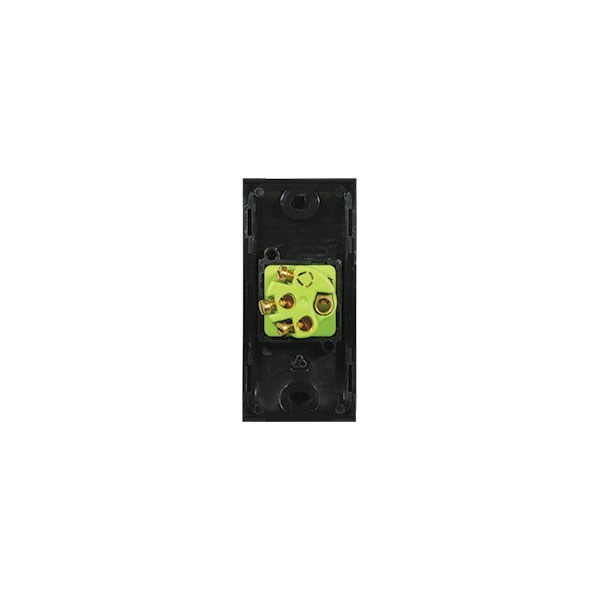

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore
- Slotted head screws for the terminals
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white. Black also stocked - please check availability
- Approved to AS/NZS60669-1-
Product specs

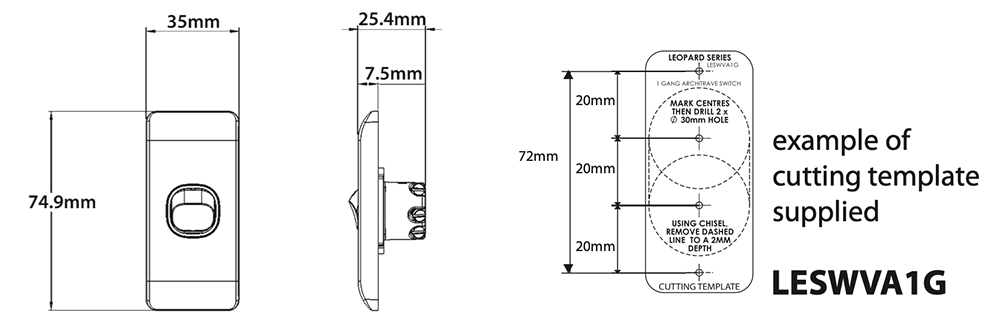

Dimensions
100mm x 35mm x 30mm
Voltage
250
Switch rating
16
Poles
1
Material
Polycarbonate
Surface finish
Gloss
Leopard LESWVA1 GBK
Download to see product technical details.
