LESWPV3G

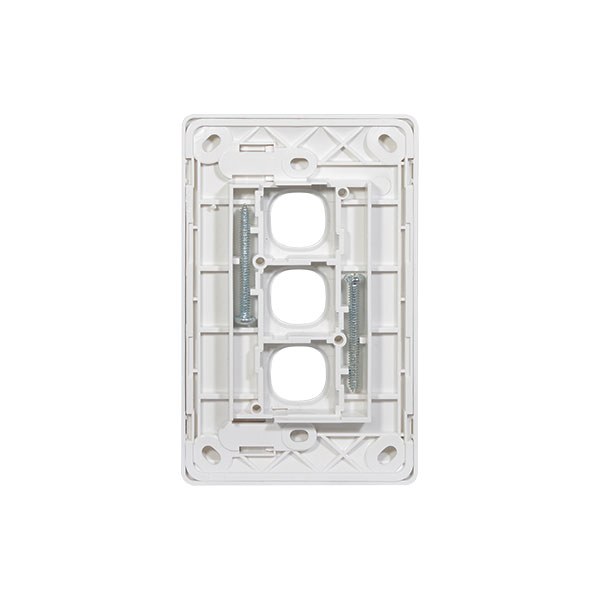

Switch Plate Vertical 3 Gang Less Mech
SKU
LESWPV3G
Box Qty
10
Categories
Plates
Features
- Switches are rated 16AX/20A 250V~ and approved to AS/NZS60669-1
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres
- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore
- Slotted head screws for the terminals
- Uses ‘Cat Flap’ screw covers for IP rating or mounting screws
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white. Black and Brushed Aluminium covers also stocked - please check availability
- Plates suit Trader Meerkat MESWC mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories-
Product specs
Dimensions
115mm x 73mm x 7mm
Module
Material
Polycarbonate
Surface finish
Gloss
