LEPPV2GBK
Power Point Switched 2 Gang Vertical 10A 250V Black
SKU
LEPPV2GBK
Box Qty
5
Categories
Power Points
Features
- Switches approved to AS/NZS3133
- Socket outlets approved to AS/NZS3112
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres

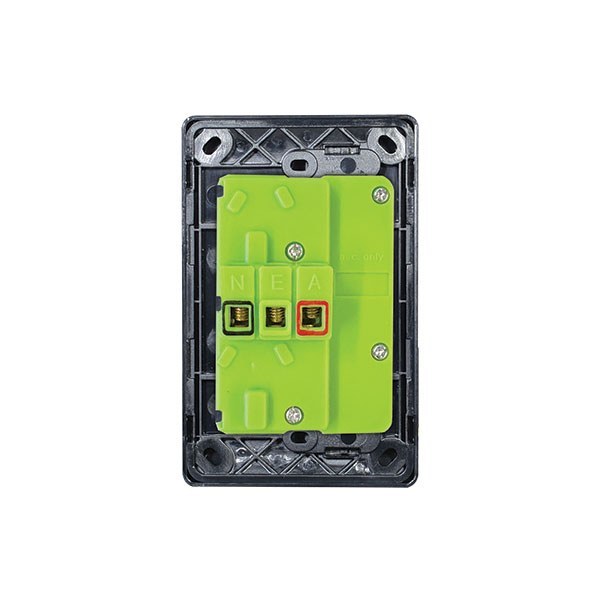

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm suit 4 x 1.5mm2
- Combination head screws for the socket terminals
- Dolly indicator colour green
- Covers, plates and dollies made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is White, LEPPV2G comes in Black (LEPPV2GBK) - Please check availability
Product specs

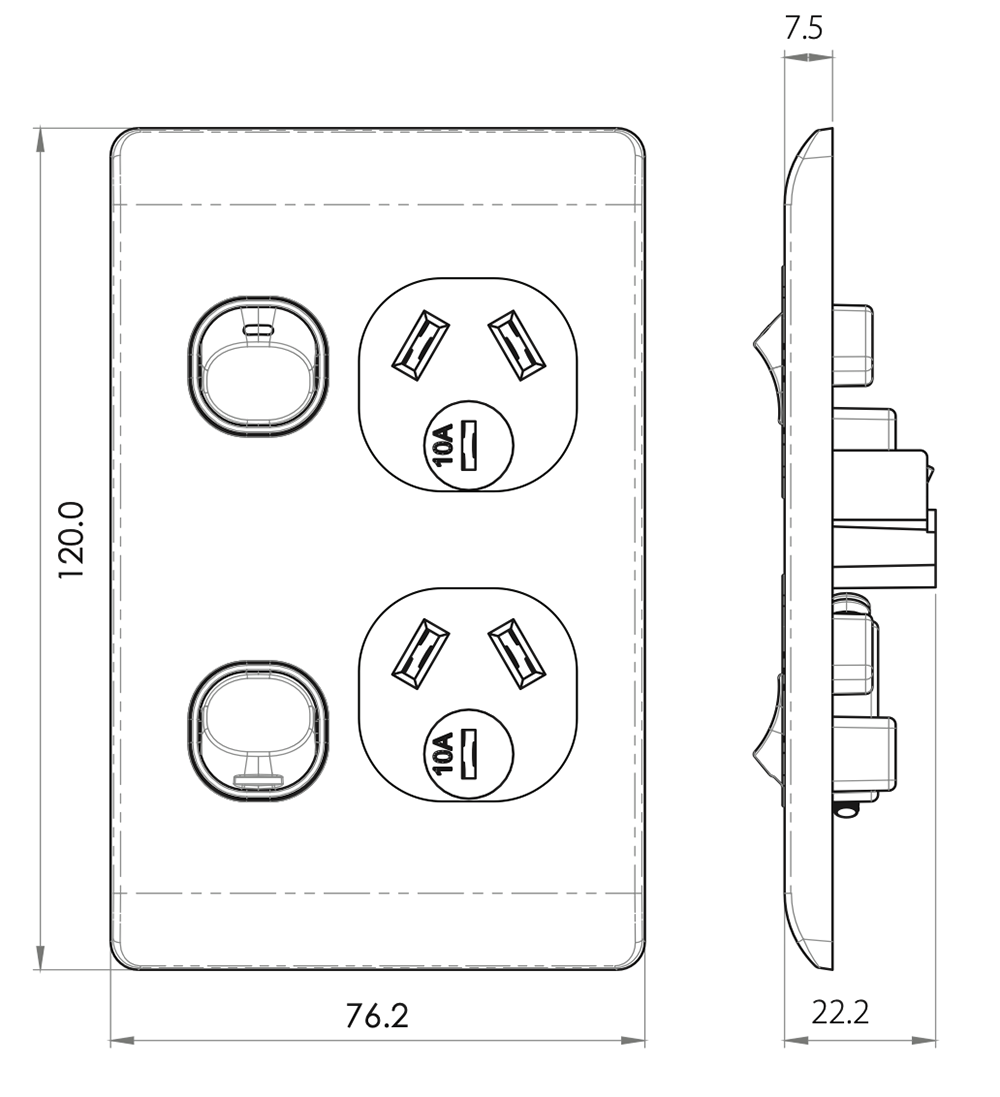

Dimensions
115mm x 76mm x 34mm
Material
Polycarbonate
Surface finish
Gloss
