LEPPSW2GBK

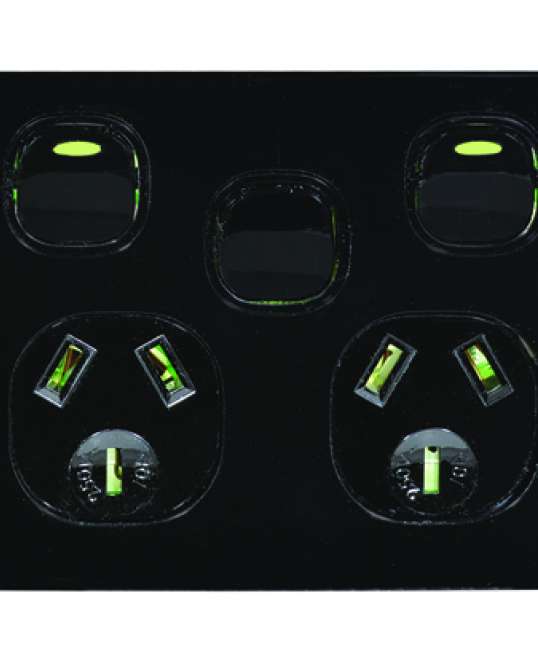

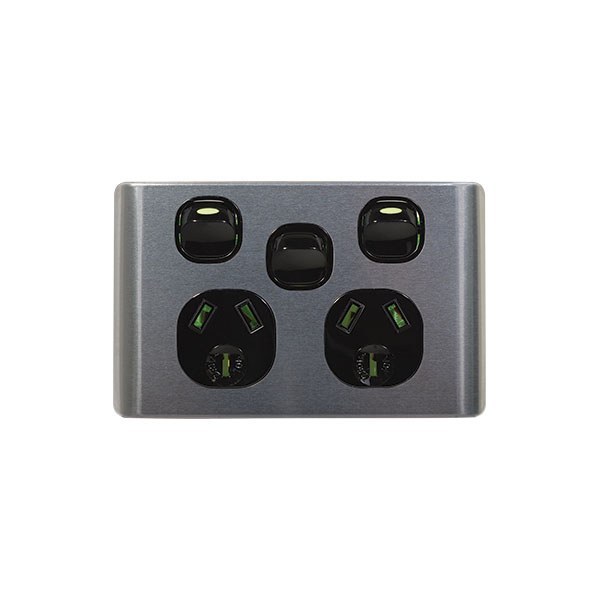

Power Point Switched 2 Gang 10A 250V with Extra Switch 16AX 20A Black
SKU
LEPPSW2GBK
Box Qty
5
Categories
Power Points
Features
- Socket outlets approved to AS/NZS3112
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres

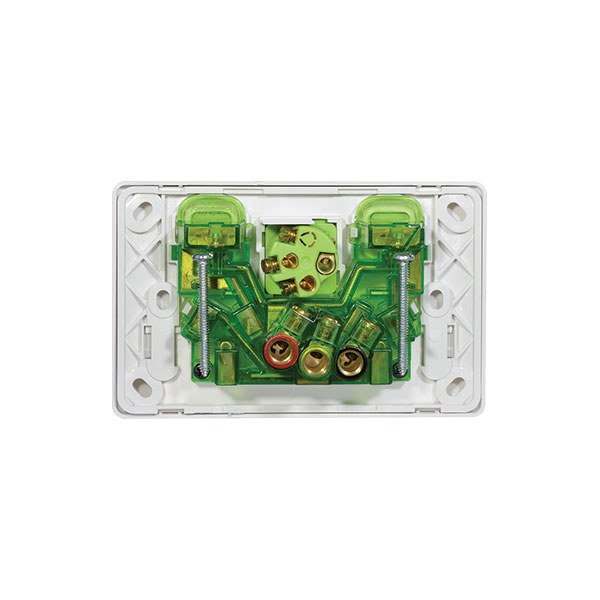

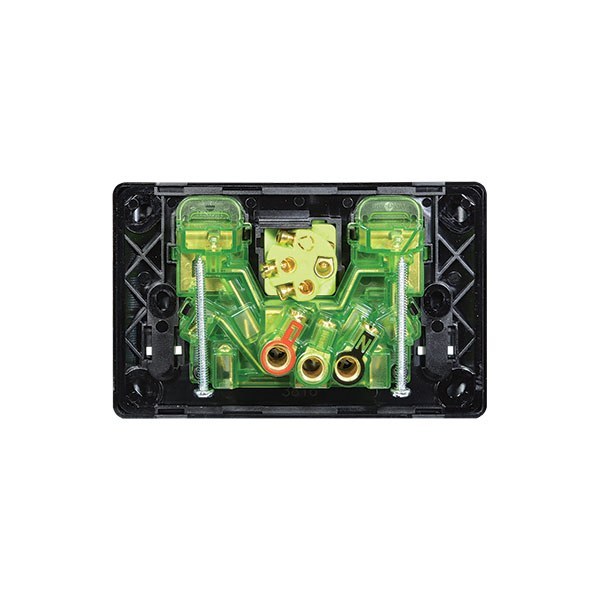

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm suit 4 x 1.5mm2
- Combination head screws for the socket terminals
- Uses ‘Cat Flap’ screw covers for IP rating mounting screws
- Dolly indicator colour green
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white. Black and Brushed Aluminium also stocked - please check availability
Product specs

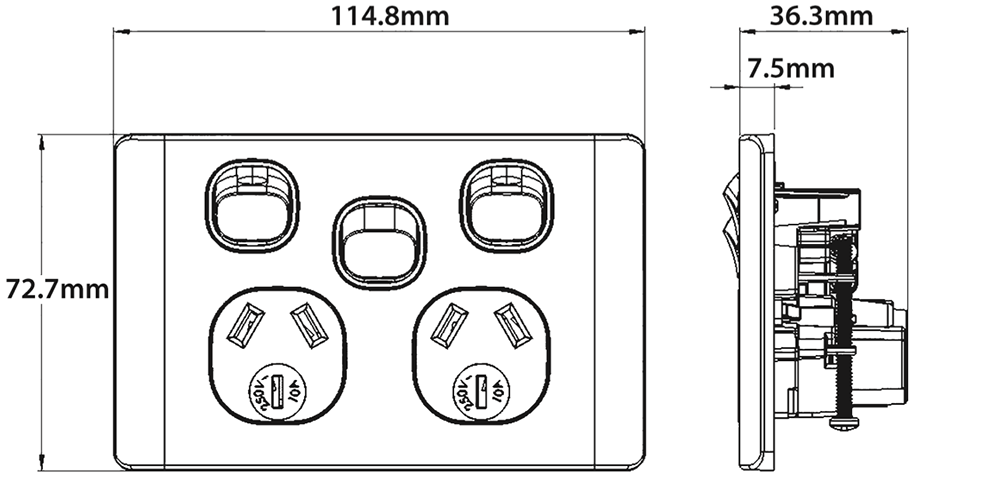

Dimensions
115mm x 73mm x 35mm
Module
Material
Polycarbonate
Surface finish
Gloss
