LEPP2G
Power Point Switched 2 Gang 10A 250V
SKU
LEPP2G
Box Qty
10
Categories
Power Points
Features
- Socket outlets approved to AS/NZS3112
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres

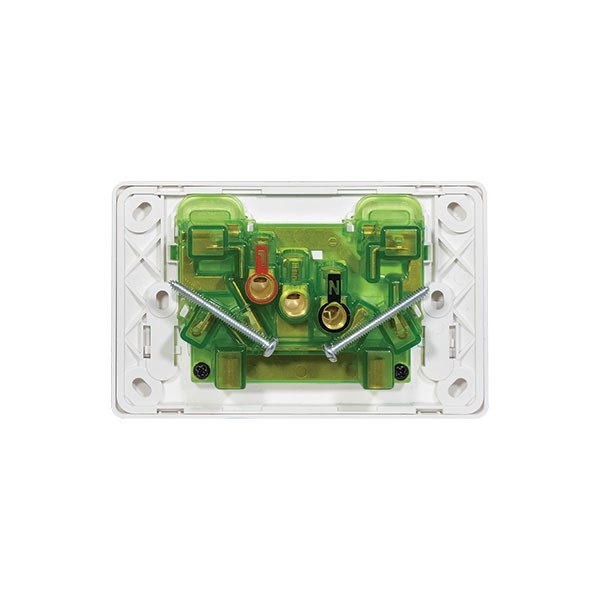

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm suit 4 x 1.5mm2
- Combination head screws for the socket terminals
- Uses ‘Cat Flap’ screw covers for IP rating mounting screws
- Dolly indicator colour green
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Standard colour is white. Black and Brushed Aluminium also stocked - please check availability
Product specs

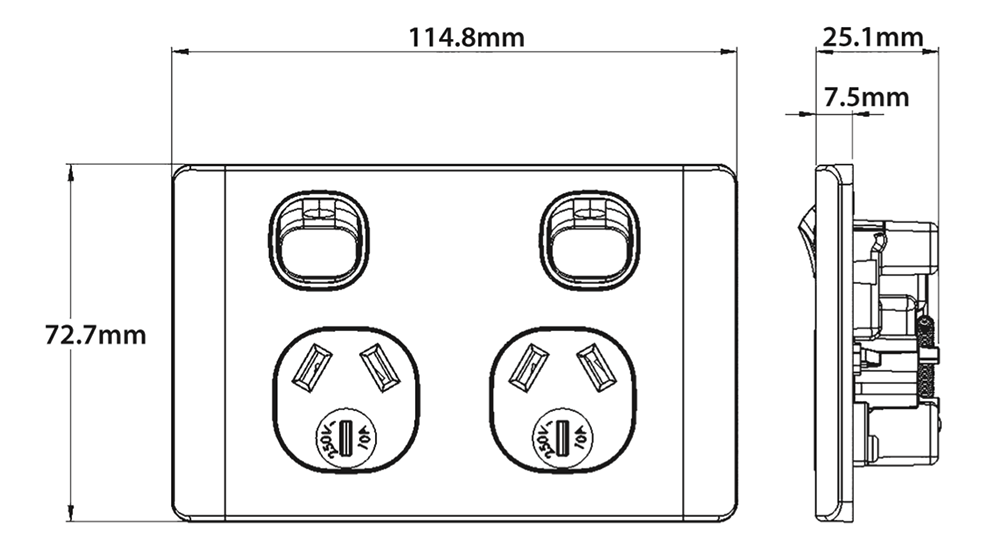

Dimensions
115mm x 73mm x 30mm
Module
Material
Polycarbonate
Surface finish
Gloss
