HYICU

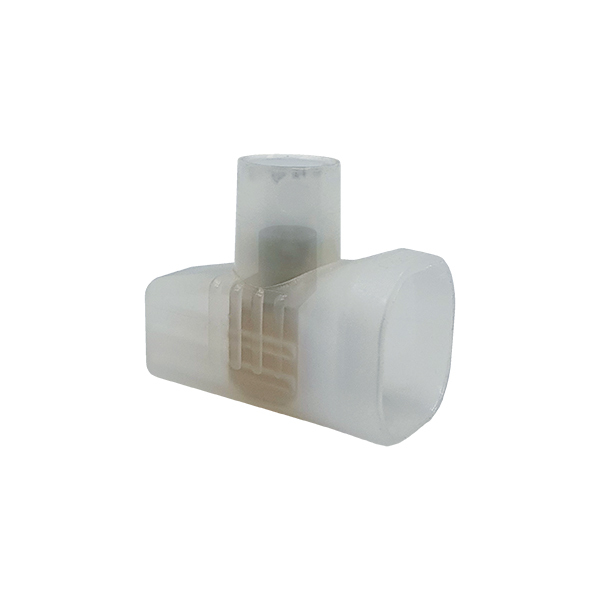

Connectors Insulated Universal Single Screw 40A Jar of 100
SKU
HYICU
Box Qty
100
Categories
Insulated Connectors
Features
- Connecting devices for low voltage circuits for household and similar purposes.
- Suitable for earth active and neutral conductors.
- Connectors also comply with requirements of AS/NZS3000:2018 (2.10.4.2, 3.7.2.4) (3.7.2.11 for Earthing connector with 2 screws)
- Suitable for 3 x 6mm2 or 4 x 2.5mm2 cables
- 40A 500V
- Flexible insulation shroud
- Brass terminal tunnel diameter 6mm
- Screw #2 Philips drive with 5mm thread
- Products tested to IEC 60998-1 and IEC 60998-2-1-
Product specs
Dimensions
25mm x 25mm x 16mm
Module
Material
Polycarbonate
Surface finish
Clear
Hyena HYICU
Download to see product technical details.
