HY1GFRWB
Fire Rated Wall Box Metal 1G
SKU
HY1GFRWB
Box Qty
10
Categories
Wall Boxes
Features
- Product is fully certified to AS1530.4-2014 with a fire rating of FRL of -120/120 (2 hours fire resistance) for back to back, side to side and above and below configurations.
- Certification: EWFA Report No. 47083900.1 Exova Warringtonfire Aust Pty Ltd 2016 (available upon request).
- Fire certification has been tested and complies without the need for fire rated mastic, which saves time on installations.
- Acoustic Rating: Weighted Sound Reduction Rating to ISO717-1 achieved Rw + Ctr = 56 dB in testing and meets building code requirements of Rw + Ctr = 50. (Reports available upon request).
- Suitable for panels 10mm up to 33mm with adjustable clamping lugs.
- 84mm mounting centres.
- Robust construction.
- 2 x 20mm diameter entries on rear surface.
- Installation must be carried out in accordance with manufacturers installation instructions for mounting requirement.

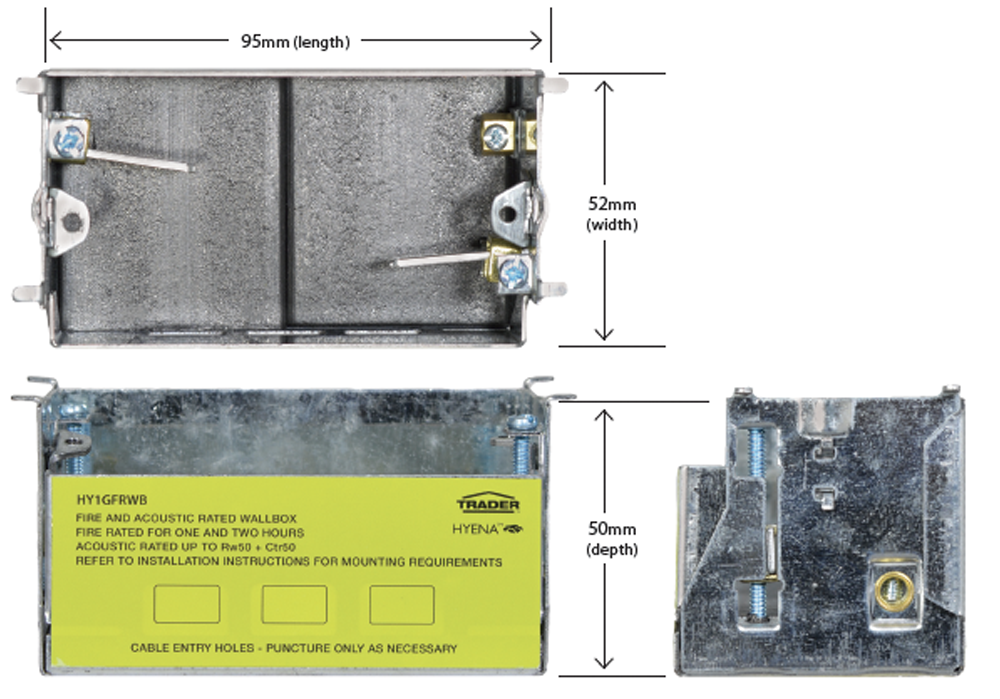

- Box dimensions: 95mm (length) x 52mm (width) x 50mm (depth / 42mm internal depth with pads).-
Product specs
Dimensions
105mm x 50mm x 50mm
Material
Steel
Surface finish
Silver
HY1GFRWB Data Sheet
Hyena Data Sheet
Hyena

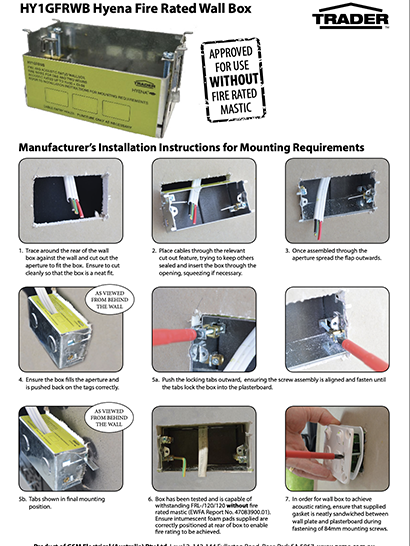

HY1GFRWB instructions
Hyena
HY1GFRWB Wall Instructions
Hyena
First Fix Accessories | Wall Boxes
Hyena
